Vehicle Info NeededCOMP CAMSPART NUMBER: 249-K08-416-8

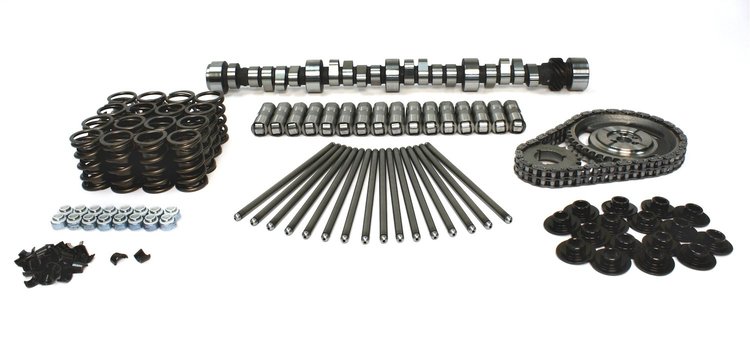

Xtreme Marine XM264HR Hydraulic Roller Camshaft Complete Kit Lift: .488"/.495" Duration: 264°/270° RPM Range: 1000-5000
$1,51895
Ships on 10/23/2026
Lowest Price GuaranteeChevrolet 262-400ci 1987-1998OE Hydraulic Roller
- Xtreme Marine XM264HR Hydraulic Roller Camshaft Complete Kit
- Xtreme Marine Camshaft
- 1 Year Limited Warranty
265, 283, 307, 302, 305, 327, 350, 383, 400, 427, L46, L48, L65, LM1, LT-1, L82, L81, LS9, L83, L98, L05, LG3, LG4, LT1, LT4, Camaro, Corvette, Chevelle, Stingray, Silverado, C10, Firebird, Chevrolet, Chevy, Small Block Chevy, Caprice, Malibu, Impala, Nova, 355, GEN1, Monte Carlo, S10
Good for pleasure use and economy, smooth idle.
Lift: .488"/.495"
Duration: 264°/270°
RPM Range: 1000-5000
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Part TypeCamshaft Kit
BrandCOMP CAMS
Package Height5.2
Package Width10.3
Package Length25.4
Weight27.0 PG
Part CategoryPerformance Parts
Exh. Duration @ .050 In. (Deg)218
Cam StyleHydraulic roller tappet
Grind NumberCS XM 264HR-12
Exh. Duration Advertised (Deg)270
Locks IncludedYes
Engine Make/SizeChevy Small Block (262-400)
Retainers IncludedYes
Intake Valve Lift With Factory Rocker Arm Ratio (I0.488
Int. Duration @ .050 In. (Deg)212
Assembly Lubricant IncludedNo
Basic Operating Rpm Range1,000-5,000
Pushrods IncludedNo
Gaskets IncludedNo
Rocker Arms IncludedNo
Intake Valve Lift0.488 in (12.395 mm)
Computer-Controlled CompatibleNo
Int. Duration Advertised (Deg)264
Lobe Separation (Deg)112
Rpm Range1000-5000
Lifter StyleHydraulic roller
Advertised Duration264 int./270 exh.
Exhaust Valve Lift With Factory Rocker Arm Ratio (0.495
Valve Springs IncludedYes
UsageMarine
Valve Lift With Factory Rocker Arm Ratio0.488 int./0.495 exh.
QuantitySold as a kit
Valve Stem Seals IncludedYes
Exhaust Valve Lift0.495 in (12.573 mm)
Advertised Intake Duration264
Outside Diameter Of Outer Spring1.43 in (36.3 mm)
Intake Duration At 050 Inch Lift212
Exhaust Duration At 050 Inch Lift218
Timing Chain StyleDouble non-roller
Timing Chain And Gears IncludedYes
Advertised Exhaust Duration270
Lifter TypeHydraulic Roller
Part FitmentSemi Universal
Duration At 050 Inch Lift212 int./218 exh.
Valve Springs RequiredNo
Lifters IncludedYes
Vendor Part NumberK08-416-8
Package Qty1
Package TypeEA
