Product Discontinued
COMP CAMSPART NUMBER: 249-K08-460-8

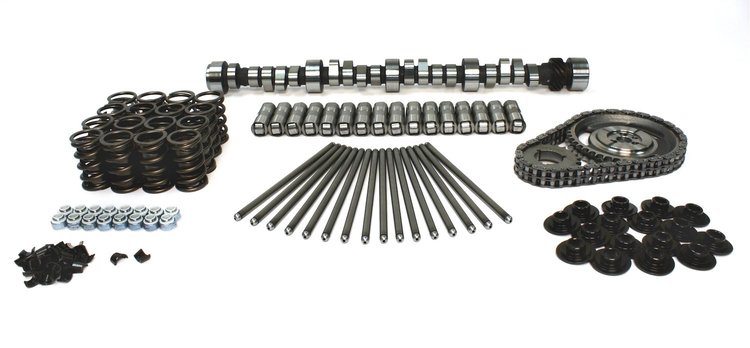

Magnum Hydraulic Roller Camshaft Complete Kit Chevy Small Block 305 & 350 Factory Roller Lift: .600"/.600"
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.
Chevy Small Block 305 & 350, 1987-98 (CARBURETED)
- Magnum Hydraulic Roller Camshaft Complete Kit
- Lift: .600"/.600"
- Duration: 304°/304°
- Lobe Separation Angle: 110°
- RPM Range: 3000-6500
- Cams Are Very Aggressive
- Designed For Performance Oriented Vehicles
- Deliver More Power Than Standard Camshafts
- 1 Year Limited Warranty
265, 283, 307, 302, 305, 327, 350, 383, 400, 427, L46, L48, L65, LM1, LT-1, L82, L81, LS9, L83, L98, L05, LG3, LG4, LT1, LT4, Camaro, Corvette, Chevelle, Stingray, Silverado, C10, Firebird, Chevrolet, Chevy, Small Block Chevy, Caprice, Malibu, Impala, Nova, 355, GEN1, Monte Carlo, S10
Street/strip applications. 3000+ stall. Use 4.10 gears, aftermarket intake and headers. Very rough idle.
Chevy Small Block 305 & 350 Factory Roller
Part TypeCamshaft Kit
BrandCOMP CAMS
Package Height5.0
Package Width10.5
Package Length26.0
Weight30.0 PG
Part CategoryPerformance Parts
Exh. Duration @ .050 In. (Deg)244
Cam StyleHydraulic roller tappet
Grind NumberCS 304H-R10
Exh. Duration Advertised (Deg)304
Locks IncludedYes
Engine Make/SizeChevy Small Block (262-400)
Retainers IncludedYes
Intake Valve Lift With Factory Rocker Arm Ratio (I0.6
Int. Duration @ .050 In. (Deg)244
Assembly Lubricant IncludedNo
Basic Operating Rpm Range3,000-6,500
Pushrods IncludedYes
Gaskets IncludedNo
Rocker Arms IncludedNo
Intake Valve Lift0.6 in (15.24 mm)
Computer-Controlled CompatibleNo
Int. Duration Advertised (Deg)304
Lobe Separation (Deg)110
Rpm Range3000-6500
Lifter StyleHydraulic roller
Advertised Duration304 int./304 exh.
Exhaust Valve Lift With Factory Rocker Arm Ratio (0.6
Valve Springs IncludedYes
UsageStreet/Strip
Valve Lift With Factory Rocker Arm Ratio0.600 int./0.600 exh.
QuantitySold as a kit
Valve Stem Seals IncludedYes
Exhaust Valve Lift0.6 in (15.24 mm)
Advertised Intake Duration304
Outside Diameter Of Outer Spring1.43 in (36.3 mm)
Intake Duration At 050 Inch Lift244
Exhaust Duration At 050 Inch Lift244
Timing Chain StyleDouble non-roller
Timing Chain And Gears IncludedYes
Advertised Exhaust Duration304
Lifter TypeHydraulic Roller
Part FitmentSemi Universal
Duration At 050 Inch Lift244 int./244 exh.
Valve Springs RequiredNo
Lifters IncludedYes
Vendor Part NumberK08-460-8
Package Qty1
Package TypeEA
