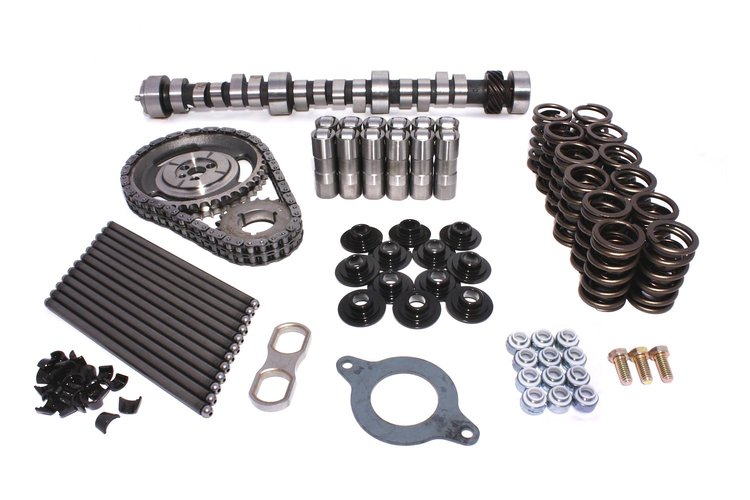

Magnum Hydraulic Roller Camshaft Complete Kit Chevy 4.3L V6 1980-97 Lift: .500"/.500"

Vehicle Info Needed

COMP CAMSPART NUMBER: 249-K09-415-8

Magnum Hydraulic Roller Camshaft Complete Kit Chevy 4.3L V6 1980-97 Lift: .500"/.500"

Name: Magnum Hydraulic Roller Camshaft Complete Kit Chevy 4.3L V6 1980-97 Lift: .500"/.500"
Brand: COMP CAMS
SKU: 249-K09-415-8
Price: 1225.95 USD
Availability: InStock

^$1,225⁹⁵

Ships on 10/22/2026

Lowest Price Guarantee

Chevrolet 4.3 Liter 262ci 90° 6 Cyl. 1980-1997

Computer Controlled Vehicles (Non- Balance Shaft)

Lift: .500"/.500"
Duration: 266°/270°
Lobe Separation Angle: 112°
RPM Range: 1800-5000
Cams Are Very Aggressive
Designed For Performance Oriented Vehicles
Deliver More Power Than Standard Camshafts
1 Year Limited Warranty
90 Degree V6; 4.3: 262; Chevrolet 262; Chevrolet 4.3L; LB1; LB4; L35; LF6; S10; Blazer; S10 Blazer; S15; Sonoma; GMC; Safari; Astro Van; Safari; GMC Safari; Silverado

Works with throttle body and sequential port injection with aftermarket chip. Good low end and mid-range.

Emissions Note:

This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART

Part TypeCamshaft Kit

BrandCOMP CAMS

Package Height5.1

Package Width10.6

Package Length25.5

Weight22.5 PG

Part CategoryPerformance Parts

Exh. Duration @ .050 In. (Deg)215

Cam StyleHydraulic roller tappet

Grind Number266HR

Exh. Duration Advertised (Deg)270

Locks IncludedYes

Engine Make/SizeChevy 262

Retainers IncludedYes

Intake Valve Lift With Factory Rocker Arm Ratio (I0.5

Int. Duration @ .050 In. (Deg)210

Assembly Lubricant IncludedNo

Basic Operating Rpm Range1,800-5,000

Pushrods IncludedNo

Gaskets IncludedNo

Rocker Arms IncludedNo

Intake Valve Lift0.5 in (12.7 mm)

Computer-Controlled CompatibleYes

Int. Duration Advertised (Deg)266

Lobe Separation (Deg)112

Rpm Range1800-5000

Lifter StyleHydraulic roller

Advertised Duration266 int./270 exh.

Exhaust Valve Lift With Factory Rocker Arm Ratio (0.5

Valve Springs IncludedYes

UsageStreet/Strip

Valve Lift With Factory Rocker Arm Ratio0.500 int./0.500 exh.

QuantitySold as a kit

Valve Stem Seals IncludedYes

Exhaust Valve Lift0.5 in (12.7 mm)

Advertised Intake Duration266

Outside Diameter Of Outer Spring1.43 in (36.3 mm)

Intake Duration At 050 Inch Lift210

Exhaust Duration At 050 Inch Lift215

Timing Chain StyleDouble non-roller

Timing Chain And Gears IncludedYes

Advertised Exhaust Duration270

Lifter TypeHydraulic Roller

Duration At 050 Inch Lift210 int./215 exh.

Valve Springs RequiredYes

Lifters IncludedYes

Vendor Part NumberK09-415-8

Package Qty1

Package TypeEA
