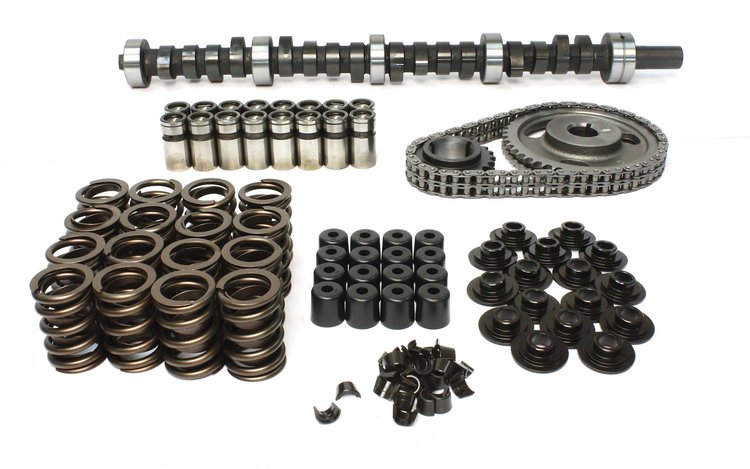

Magnum 292H Hydraulic Flat Tappet Camshaft Complete Kit Lift: .518" /518" Duration: 292°/292° RPM Range: 2500-6500

Vehicle Info Needed

COMP CAMSPART NUMBER: 249-K10-210-4

Magnum 292H Hydraulic Flat Tappet Camshaft Complete Kit Lift: .518" /518" Duration: 292°/292° RPM Range: 2500-6500

Name: Magnum 292H Hydraulic Flat Tappet Camshaft Complete Kit Lift: .518" /518" Duration: 292°/292° RPM Range: 2500-6500
Brand: COMP CAMS
SKU: 249-K10-210-4
Price: 623.95 USD
Availability: InStock

^$623⁹⁵

Ships on 10/23/2026

Lowest Price Guarantee

American Motors 290-401ci 1966-1991

Lift:

Duration:

RPM Range:

Cams Are Very Aggressive
Designed For Performance Oriented Vehicles
Deliver More Power Than Standard Camshafts
1 Year Limited Warranty
AMC; Jeep; 4.0; 290; XJ; Cherokee; Wagoneer; Comanche; Grand Wagoneer; Wrangler; JK; Rambler; Eagle; ZJ; Chrysler; AM General; American Motors; 327; 390; 304; 327; 343; 360; 5.9; Rebel; Nash; AMX; Javelin

Street/strip cam for 360 and up. Use 10:1 compression with 3000+ converter and low gears. Very rough idle.

Emissions Note:

This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART

Part TypeCamshaft Kit

BrandCOMP CAMS

Package Height5.0

Package Width11.5

Package Length25.0

Weight26.0 PG

Part CategoryPerformance Parts

Exh. Duration @ .050 In. (Deg)244

Cam StyleHydraulic flat tappet

Grind NumberA 292H-10

Exh. Duration Advertised (Deg)292

Locks IncludedYes

Engine Make/SizeAMC 290-401

Retainers IncludedYes

Intake Valve Lift With Factory Rocker Arm Ratio (I0.518

Int. Duration @ .050 In. (Deg)244

Assembly Lubricant IncludedYes

Basic Operating Rpm Range2,500-6,500

Pushrods IncludedNo

Gaskets IncludedNo

Rocker Arms IncludedNo

Intake Valve Lift0.518 in (13.157 mm)

Computer-Controlled CompatibleNo

Int. Duration Advertised (Deg)292

Lobe Separation (Deg)110

Rpm Range2500-6500

Lifter StyleHydraulic flat tappet

Advertised Duration292 int./292 exh.

Exhaust Valve Lift With Factory Rocker Arm Ratio (0.518

Valve Springs IncludedYes

UsageStreet/Strip

Valve Lift With Factory Rocker Arm Ratio0.518 int./0.518 exh.

QuantitySold as a kit

Valve Stem Seals IncludedYes

Exhaust Valve Lift0.518 in (13.157 mm)

Advertised Intake Duration292

Outside Diameter Of Outer Spring1.43 in (36.3 mm)

Intake Duration At 050 Inch Lift244

Exhaust Duration At 050 Inch Lift244

Timing Chain StyleDouble non-roller

Timing Chain And Gears IncludedYes

Advertised Exhaust Duration292

Lifter TypeHydraulic Flat Tappet

Duration At 050 Inch Lift244 int./244 exh.

Valve Springs RequiredNo

Lifters IncludedYes

Vendor Part NumberK10-210-4

Package Qty1

Package TypeEA
