Product Discontinued
COMP CAMSPART NUMBER: 249-K11-324-4

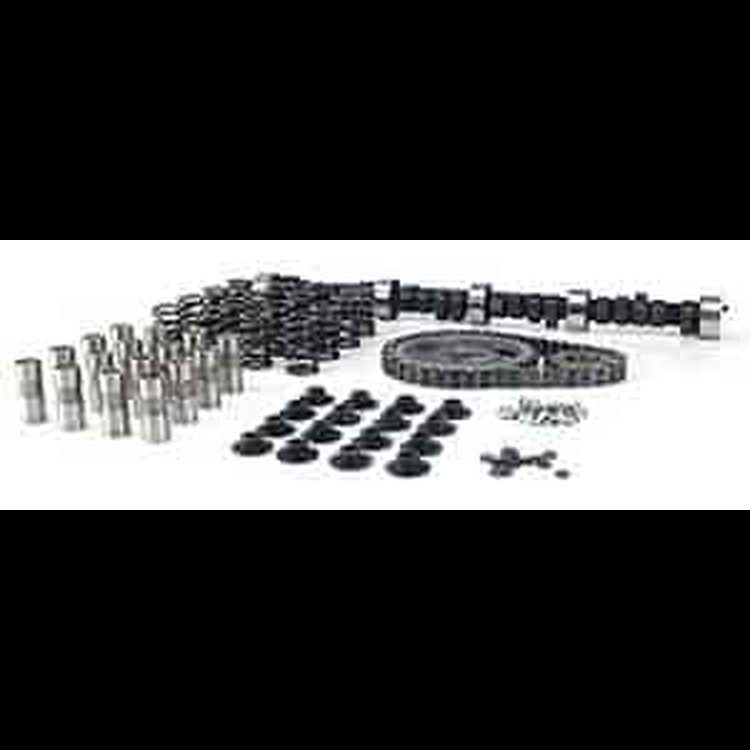

Marine Hydraulic Flat Tappet Camshaft Complete Kit Lift .568"/.578" Duration 292°/296° RPM Range 2500-6500
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.
Chevrolet 396-454 C.I. 8 cyl. 1967-1996
- Marine Hydraulic Flat Tappet Camshaft Complete Kit
- Complete Camshaft Kit
- 1 Year Limited Warranty
396; 402; 427; 454; 496; 502; 572; 632; Chevrolet; BBC; Big Block Chevy; Big Block Chevrolet; Chevelle; Corvette; Mark IV; GEN 4; Monte Carlo; Caprice; Sprint; Nova; Camaro; Firebird; L78; Z16; L37; L34; L35; L37; L66; LS3; L34; L35; L37; L66; COPO; ZL1; C10; K10
Lift .568"/.578"
Duration 292°/296°
RPM Range 2500-6500
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Part TypeCamshaft Kit
BrandCOMP CAMS
Package Height5.2
Package Width10.3
Package Length25.4
Weight26.2 PG
Part CategoryPerformance Parts
Exh. Duration @ .050 In. (Deg)246
Cam StyleHydraulic flat tappet
Grind Number292AH
Exh. Duration Advertised (Deg)296
Locks IncludedYes
Engine Make/SizeChevy Big Block (396-454)
Retainers IncludedYes
Intake Valve Lift With Factory Rocker Arm Ratio (I0.568
Int. Duration @ .050 In. (Deg)244
Assembly Lubricant IncludedYes
Basic Operating Rpm Range2,500-6,500
Pushrods IncludedNo
Gaskets IncludedNo
Rocker Arms IncludedNo
Intake Valve Lift0.568 in (14.427 mm)
Computer-Controlled CompatibleNo
Int. Duration Advertised (Deg)292
Lobe Separation (Deg)110
Rpm Range2500-6500
Lifter StyleHydraulic flat tappet
Advertised Duration292 int./296 exh.
Exhaust Valve Lift With Factory Rocker Arm Ratio (0.578
Valve Springs IncludedYes
UsageMarine
Valve Lift With Factory Rocker Arm Ratio0.568 int./0.578 exh.
QuantitySold as a kit
Valve Stem Seals IncludedYes
Exhaust Valve Lift0.578 in (14.681 mm)
Advertised Intake Duration292
Outside Diameter Of Outer Spring1.509 in (38.3 mm)
Intake Duration At 050 Inch Lift244
Exhaust Duration At 050 Inch Lift246
Timing Chain StyleDouble non-roller
Timing Chain And Gears IncludedYes
Advertised Exhaust Duration296
Lifter TypeHydraulic Flat Tappet
Part FitmentSemi Universal
Duration At 050 Inch Lift244 int./246 exh.
Valve Springs RequiredNo
Lifters IncludedYes
Vendor Part NumberK11-324-4
Package Qty1
Package TypeEA
