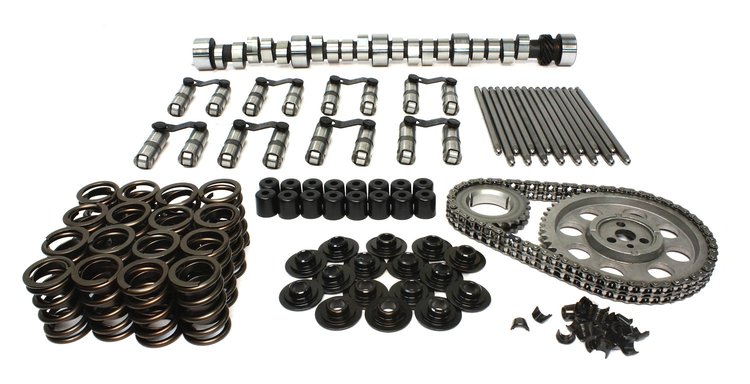

Xtreme Marine XM296HR Retro-Fit Hydraulic Roller Camshaft Complete Kit Lift .566"/.566" Duration 296°/302° RPM Range 2800-6200

Vehicle Info Needed

COMP CAMSPART NUMBER: 249-K11-456-8

Xtreme Marine XM296HR Retro-Fit Hydraulic Roller Camshaft Complete Kit Lift .566"/.566" Duration 296°/302° RPM Range 2800-6200

Name: Xtreme Marine XM296HR Retro-Fit Hydraulic Roller Camshaft Complete Kit Lift .566"/.566" Duration 296°/302° RPM Range 2800-6200
Brand: COMP CAMS
SKU: 249-K11-456-8
Price: 1729.95 USD
Availability: InStock

^$1,729⁹⁵

1 left in stock

Ships Tomorrow

Lowest Price Guarantee

Chevrolet 396-454 c.i. 8 CYL. 1965-1996

Retro-Fit

Lift

Duration

RPM Range

Xtreme Marine Camshaft
1 Year Limited Warranty
Chevelle, Camaro, Corvette, Stingray, Silverado, C10, Firebird, Chevrolet, Big Block, Chevy, BBC, 454, 427, 502, 396, Caprice, Malibu, Impala, Nova, Monte Carlo, S10, 572

Good for jet boat with A or B impeller in bracket racing or performance use.

Emissions Note:

This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART

Part TypeCamshaft Kit

BrandCOMP CAMS

Package Height5.3

Package Width10.5

Package Length25.5

Weight31.4 PG

Part CategoryPerformance Parts

Exh. Duration @ .050 In. (Deg)248

Cam StyleHydraulic roller tappet

Grind NumberCB XM 296HR-12

Exh. Duration Advertised (Deg)302

Locks IncludedYes

Engine Make/SizeChevy Big Block (396-454)

Retainers IncludedYes

Intake Valve Lift With Factory Rocker Arm Ratio (I0.566

Int. Duration @ .050 In. (Deg)242

Assembly Lubricant IncludedNo

Basic Operating Rpm Range2,800-6,200

Pushrods IncludedNo

Gaskets IncludedNo

Rocker Arms IncludedNo

Intake Valve Lift0.566 in (14.376 mm)

Computer-Controlled CompatibleNo

Int. Duration Advertised (Deg)296

Lobe Separation (Deg)112

Rpm Range2800-6200

Lifter StyleHydraulic roller

Advertised Duration296 int./302 exh.

Exhaust Valve Lift With Factory Rocker Arm Ratio (0.566

Valve Springs IncludedYes

UsageMarine

Valve Lift With Factory Rocker Arm Ratio0.566 int./0.566 exh.

QuantitySold as a kit

Valve Stem Seals IncludedYes

Exhaust Valve Lift0.566 in (14.376 mm)

Advertised Intake Duration296

Outside Diameter Of Outer Spring1.55 in (39.4 mm)

Intake Duration At 050 Inch Lift242

Exhaust Duration At 050 Inch Lift248

Timing Chain StyleDouble non-roller

Timing Chain And Gears IncludedYes

Advertised Exhaust Duration302

Lifter TypeHydraulic Roller

Duration At 050 Inch Lift242 int./248 exh.

Valve Springs RequiredNo

Lifters IncludedYes

Vendor Part NumberK11-456-8

Package Qty1

Package TypeEA
