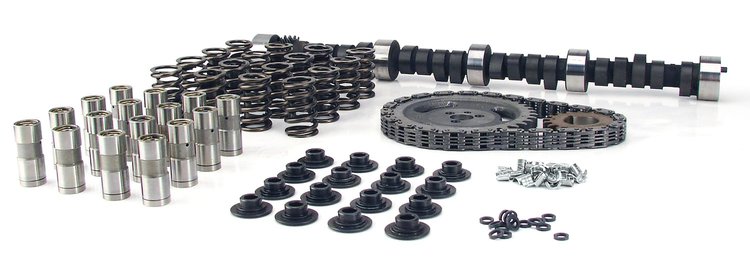

Magnum 286H Hydraulic Flat Tappet Camshaft Kit
Lift: .490''/.490"
Duration: 286°/286°
RPM Range: 2200-6200


*Note: In order to use these camshafts in 1955-57 265ci blocks, it is necessary to machine a small groove in the rear main journal of the cam to allow oil flow to the top of the engine.

Needs 9:1 compression, 2800 stall, headers, gears. Choppy idle.

Operating Range:	2200-6200 RPM
Duration Advertised:	286° Intake / 286° Exhaust
Duration @ .050' Lift:	236° Intake / 236° Exhaust
Valve Lift w/1.5 Rockers:	.490' Intake / .490' Exhaust
Lobe Separation Angle:	110°

265, 283, 307, 302, 305, 327, 350, 383, 400, 427, L46, L48, L65, LM1, LT-1, L82, L81, LS9, L83, L98, L05, LG3, LG4, LT1, LT4, Camaro, Corvette, Chevelle, Stingray, Silverado, C10, Firebird, Chevrolet, Chevy, Small Block Chevy, Caprice, Malibu, Impala, Nova, 355, GEN1, Monte Carlo, S10


Needs 9:1 compression, 2800+ stall, headers, gears. Choppy idle.

Emissions Note:

This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
