Vehicle Info NeededCOMP CAMSPART NUMBER: 249-K12-433-8

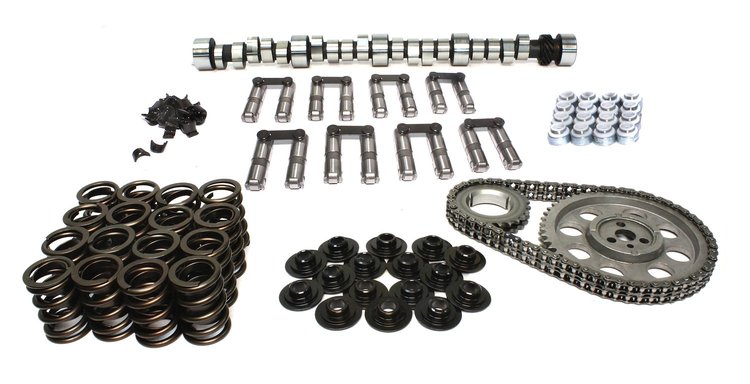

Comp Cams S/B HYD ROLLER 288
$1,62495
Ships on 10/13/2026
Lowest Price GuaranteeChevy 262-400ci Small Block 1955-98
For engines NOT originally equipped with a hydraulic roller camshaft.
For engines NOT originally equipped with a hydraulic roller camshaft.
- Xtreme Energy XR288HR Retro-Fit Hydraulic Roller Camshaft Complete Kit
- For Retro-Fit (Link Bar) Hydraulic Roller Lifters; Fits '58-'021 262-400 cid Small Block Chevy
- Street/strip applications
- 9:1 compression
- Rough idle
- Intake, headers, 2800+ stall, gears
265, 283, 307, 302, 305, 327, 350, 383, 400, 427, L46, L48, L65, LM1, LT-1, L82, L81, LS9, L83, L98, L05, LG3, LG4, LT1, LT4, Camaro, Corvette, Chevelle, Stingray, Silverado, C10, Firebird, Chevrolet, Chevy, Small Block Chevy, Caprice, Malibu, Impala, Nova, 355, GEN1, Monte Carlo, S10
Street/strip applications, 9:1 compression, rough idle intake, headers, 2800+ stall, gears.
Lift: .520''/.540''
Duration: 288°/294°
Lobe Separation Angle: 110°
RPM Range: 2500-6000
Includes Cam, Lifters, Valve Springs, Retainers, Locks, Seals, & Timing Set
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Part TypeCamshaft Kit
BrandCOMP CAMS
Package Height5.2
Package Width10.4
Package Length25.4
Weight27.55 PG
Part CategoryPerformance Parts
Exh. Duration @ .050 In. (Deg)242
Cam StyleHydraulic roller tappet
Grind NumberCS XR288HR-10
Exh. Duration Advertised (Deg)294
Locks IncludedYes
Engine Make/SizeChevy Small Block (262-400)
Retainers IncludedYes
Intake Valve Lift With Factory Rocker Arm Ratio (I0.52
Int. Duration @ .050 In. (Deg)236
Assembly Lubricant IncludedNo
Basic Operating Rpm Range2,500-6,000
Pushrods IncludedYes
Gaskets IncludedNo
Rocker Arms IncludedNo
Intake Valve Lift0.52 in (13.208 mm)
Computer-Controlled CompatibleNo
Int. Duration Advertised (Deg)288
Lobe Separation (Deg)110
Rpm Range2500-6000
Lifter StyleHydraulic roller
Advertised Duration288 int./294 exh.
Exhaust Valve Lift With Factory Rocker Arm Ratio (0.54
Valve Springs IncludedYes
UsageStreet/Performance
Valve Lift With Factory Rocker Arm Ratio0.520 int./0.540 exh.
QuantitySold as a kit
Valve Stem Seals IncludedYes
Exhaust Valve Lift0.54 in (13.716 mm)
Advertised Intake Duration288
Outside Diameter Of Outer Spring1.43 in (36.3 mm)
Intake Duration At 050 Inch Lift236
Exhaust Duration At 050 Inch Lift242
Timing Chain StyleDouble non-roller
Timing Chain And Gears IncludedYes
Advertised Exhaust Duration294
Lifter TypeHydraulic Roller
Part FitmentSemi Universal
Duration At 050 Inch Lift236 int./242 exh.
Valve Springs RequiredNo
Lifters IncludedYes
Vendor Part NumberK12-433-8
Package Qty1
Package TypeEA
