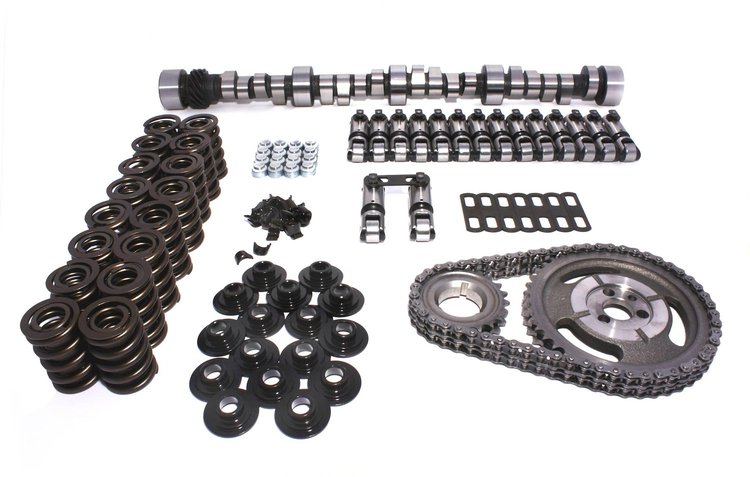

Magnum Mechanical Roller Cam Complete Kit Chevy Small Block 262-400ci 1955-98 Lift: .550"/.550"
InfoVehicle Info Needed
COMP CAMSPART NUMBER: 249-K12-702-8

Magnum Mechanical Roller Cam Complete Kit Chevy Small Block 262-400ci 1955-98 Lift: .550"/.550"

$1,62495
ShippingShips on 09/15/2026
Lowest PriceLowest Price Guarantee

Chevy Small Block 262-400ci 1955-98
    Magnum Mechanical Roller Cam Complete Kit
    Chevy Small Block 262-400ci 1955-98
  • Lift: .550"/.550"
  • Duration: 280°/280°
  • Lobe Separation Angle: 110°
  • RPM Range: 2500-6500

  • Cams Are Very Aggressive
  • Designed For Performance Oriented Vehicles
  • Deliver More Power Than Standard Camshafts
  • 1 Year Limited Warranty

    265, 283, 307, 302, 305, 327, 350, 383, 400, 427, L46, L48, L65, LM1, LT-1, L82, L81, LS9, L83, L98, L05, LG3, LG4, LT1, LT4, Camaro, Corvette, Chevelle, Stingray, Silverado, C10, Firebird, Chevrolet, Chevy, Small Block Chevy, Caprice, Malibu, Impala, Nova, 355, GEN1, Monte Carlo, S10


    Street/strip performance. Choppy idle, use 2500+ stall and headers. 9.5:1 compression.

Emissions Note:

This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART

Part TypeCamshaft Kit
BrandCOMP CAMS
Package Height5.0
Package Width11.5
Package Length25.0
Weight25.3 PG
Part CategoryPerformance Parts
Exh. Duration @ .050 In. (Deg)236
Cam StyleMechanical roller tappet
Grind NumberCS 280A-R10
Exh. Duration Advertised (Deg)280
Locks IncludedYes
Engine Make/SizeChevy Small Block (262-400)
Retainers IncludedYes
Intake Valve Lift With Factory Rocker Arm Ratio (I0.55
Int. Duration @ .050 In. (Deg)236
Assembly Lubricant IncludedNo
Basic Operating Rpm Range2,500-6,500
Pushrods IncludedNo
Gaskets IncludedNo
Intake Valve Lash0.02 in (0.508 mm)
Rocker Arms IncludedNo
Intake Valve Lift0.55 in (13.97 mm)
Computer-Controlled CompatibleNo
Int. Duration Advertised (Deg)280
Lobe Separation (Deg)110
Rpm Range2500-6500
Lifter StyleMechanical roller
Advertised Duration280 int./280 exh.
Exhaust Valve Lift With Factory Rocker Arm Ratio (0.55
Valve Springs IncludedYes
UsageStreet/Strip
Valve Lift With Factory Rocker Arm Ratio0.550 int./0.550 exh.
QuantitySold as a kit
Valve Stem Seals IncludedYes
Exhaust Valve Lash0.02 in (0.508 mm)
Exhaust Valve Lift0.55 in (13.97 mm)
Advertised Intake Duration280
Outside Diameter Of Outer Spring1.46 in (37.1 mm)
Intake Duration At 050 Inch Lift236
Exhaust Duration At 050 Inch Lift236
Timing Chain StyleDouble non-roller
Timing Chain And Gears IncludedYes
Advertised Exhaust Duration280
Lifter TypeMechanical Roller
Part FitmentSemi Universal
Duration At 050 Inch Lift236 int./236 exh.
Valve Springs RequiredNo
Lifters IncludedYes
Vendor Part NumberK12-702-8
Package Qty1
Package TypeEA
