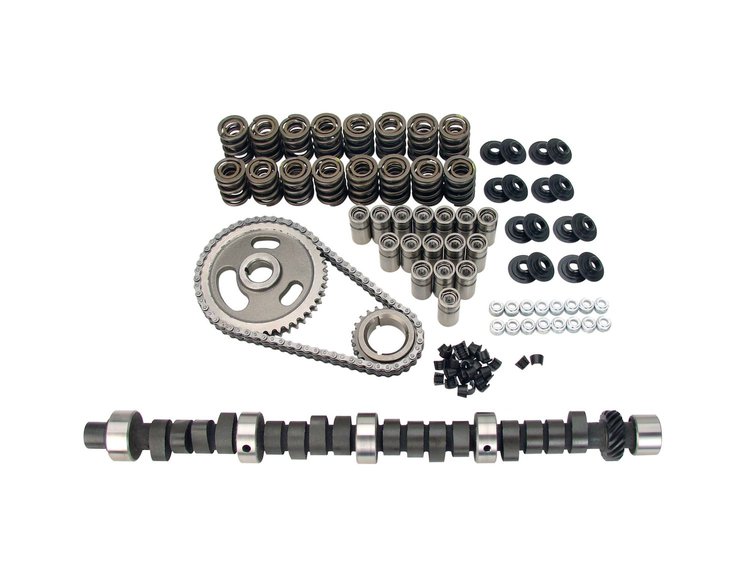

Xtreme Energy 268H Hydraulic Flat Tappet Camshaft Complete Kit Lift .477"/.480" Duration 268°/280° RPM Range 1600-5800

Vehicle Info Needed

COMP CAMSPART NUMBER: 249-K20-223-3

Xtreme Energy 268H Hydraulic Flat Tappet Camshaft Complete Kit Lift .477"/.480" Duration 268°/280° RPM Range 1600-5800

Name: Xtreme Energy 268H Hydraulic Flat Tappet Camshaft Complete Kit Lift .477"/.480" Duration 268°/280° RPM Range 1600-5800
Brand: COMP CAMS
SKU: 249-K20-223-3
Price: 572.95 USD
Availability: InStock

^$572⁹⁵

4 left in stock

Ships Today

Lowest Price Guarantee

Chrysler 273-360ci Small Block 1964-2003

Lift

Duration

RPM Range

Produces Better Throttle Response
Produces Top Engine Horsepower
Delivers Increased Engine Vacuum
1 Year Limited Warranty
273, 360, 318, AMC, Dodge, Mopar, Plymouth, Dart, Road Runner, Charger, Challenger, 383, 400, 440, 426, HEMI, 426 Wedge, 426 HEMI, RB, B, HEMI, 392, Chrysler, LA

Great for street machines, largest cam for stock converter, 273-318 works best with 2000 stall.

Emissions Note:

This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART

Part TypeCamshaft Kit

BrandCOMP CAMS

Package Height5.1

Package Width10.3

Package Length25.3

Weight23.75 PG

Part CategoryPerformance Parts

Exh. Duration @ .050 In. (Deg)230

Cam StyleHydraulic flat tappet

Grind NumberCRS XE268H-10

Exh. Duration Advertised (Deg)280

Locks IncludedYes

Engine Make/SizeMopar 273-360

Retainers IncludedYes

Intake Valve Lift With Factory Rocker Arm Ratio (I0.477

Int. Duration @ .050 In. (Deg)224

Assembly Lubricant IncludedYes

Basic Operating Rpm Range1,600-5,800

Pushrods IncludedNo

Gaskets IncludedNo

Rocker Arms IncludedNo

Intake Valve Lift0.477 in (12.116 mm)

Computer-Controlled CompatibleNo

Int. Duration Advertised (Deg)268

Lobe Separation (Deg)110

Rpm Range1600-5800

Lifter StyleHydraulic flat tappet

Advertised Duration268 int./280 exh.

Exhaust Valve Lift With Factory Rocker Arm Ratio (0.48

Valve Springs IncludedYes

UsageStreet/Performance

Valve Lift With Factory Rocker Arm Ratio0.477 int./0.480 exh.

QuantitySold as a kit

Valve Stem Seals IncludedYes

Exhaust Valve Lift0.48 in (12.192 mm)

Advertised Intake Duration268

Outside Diameter Of Outer Spring1.494 in (37.9 mm)

Intake Duration At 050 Inch Lift224

Exhaust Duration At 050 Inch Lift230

Timing Chain StyleLink belt

Timing Chain And Gears IncludedYes

Advertised Exhaust Duration280

Lifter TypeHydraulic Flat Tappet

Part FitmentSemi Universal

Duration At 050 Inch Lift224 int./230 exh.

Valve Springs RequiredNo

Lifters IncludedYes

Vendor Part NumberK20-223-3

Package Qty1

Package TypeEA
