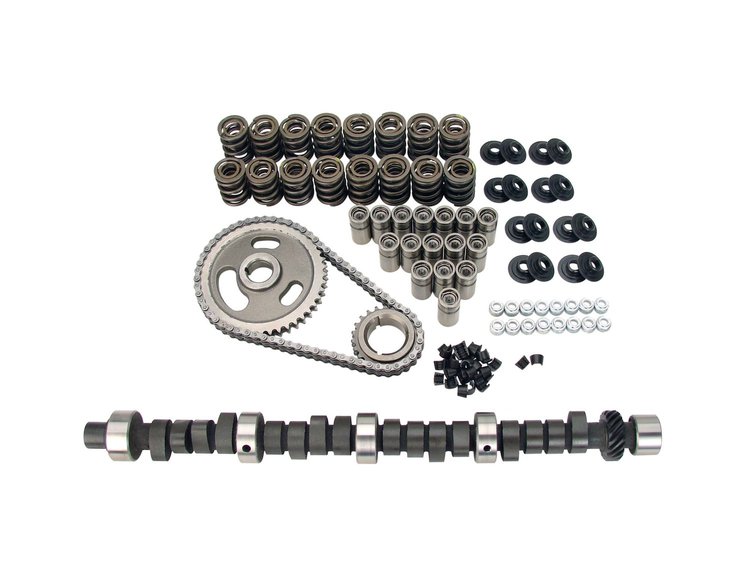

Xtreme Energy 294H Hydraulic Flat Tappet Camshaft Complete Kit Lift .519"/.524" Duration 294°/306° RPM Range 3000-7000

Vehicle Info Needed

COMP CAMSPART NUMBER: 249-K20-226-4

Xtreme Energy 294H Hydraulic Flat Tappet Camshaft Complete Kit Lift .519"/.524" Duration 294°/306° RPM Range 3000-7000

Name: Xtreme Energy 294H Hydraulic Flat Tappet Camshaft Complete Kit Lift .519"/.524" Duration 294°/306° RPM Range 3000-7000
Brand: COMP CAMS
SKU: 249-K20-226-4
Price: 737.95 USD
Availability: InStock

^$737⁹⁵

Ships on 10/23/2026

Lowest Price Guarantee

Chrysler 273-360ci Small Block 1964-2003

Lift

Duration

RPM Range

Produces Better Throttle Response
Produces Top Engine Horsepower
Delivers Increased Engine Vacuum
1 Year Limited Warranty
273, 360, 318, AMC, Dodge, Mopar, Plymouth, Dart, Road Runner, Charger, Challenger, 383, 400, 440, 426, HEMI, 426 Wedge, 426 HEMI, RB, B, HEMI, 392, Chrysler, LA

Pro Street/bracket, good intake, headers, gear, 3500+ stall.

Emissions Note:

This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART

Part TypeCamshaft Kit

BrandCOMP CAMS

Package Height5.4

Package Width10.5

Package Length25.5

Weight24.55 PG

Part CategoryPerformance Parts

Exh. Duration @ .050 In. (Deg)256

Cam StyleHydraulic flat tappet

Grind NumberXE294H

Exh. Duration Advertised (Deg)306

Locks IncludedYes

Engine Make/SizeMopar 273-360

Retainers IncludedYes

Intake Valve Lift With Factory Rocker Arm Ratio (I0.519

Int. Duration @ .050 In. (Deg)250

Assembly Lubricant IncludedYes

Basic Operating Rpm Range3,000-7,000

Pushrods IncludedNo

Gaskets IncludedNo

Rocker Arms IncludedNo

Intake Valve Lift0.519 in (13.183 mm)

Computer-Controlled CompatibleNo

Int. Duration Advertised (Deg)294

Lobe Separation (Deg)110

Rpm Range3000-7000

Lifter StyleHydraulic flat tappet

Advertised Duration294 int./306 exh.

Exhaust Valve Lift With Factory Rocker Arm Ratio (0.524

Valve Springs IncludedYes

UsageStreet/Performance

Valve Lift With Factory Rocker Arm Ratio0.519 int./0.524 exh.

QuantitySold as a kit

Valve Stem Seals IncludedYes

Exhaust Valve Lift0.524 in (13.31 mm)

Advertised Intake Duration294

Outside Diameter Of Outer Spring1.437 in (36.5 mm)

Intake Duration At 050 Inch Lift250

Exhaust Duration At 050 Inch Lift256

Timing Chain StyleLink belt

Timing Chain And Gears IncludedYes

Advertised Exhaust Duration306

Lifter TypeHydraulic Flat Tappet

Duration At 050 Inch Lift250 int./256 exh.

Valve Springs RequiredNo

Lifters IncludedYes

Vendor Part NumberK20-226-4

Package Qty1

Package TypeEA
