Product Discontinued
COMP CAMSPART NUMBER: 249-K20-229-4

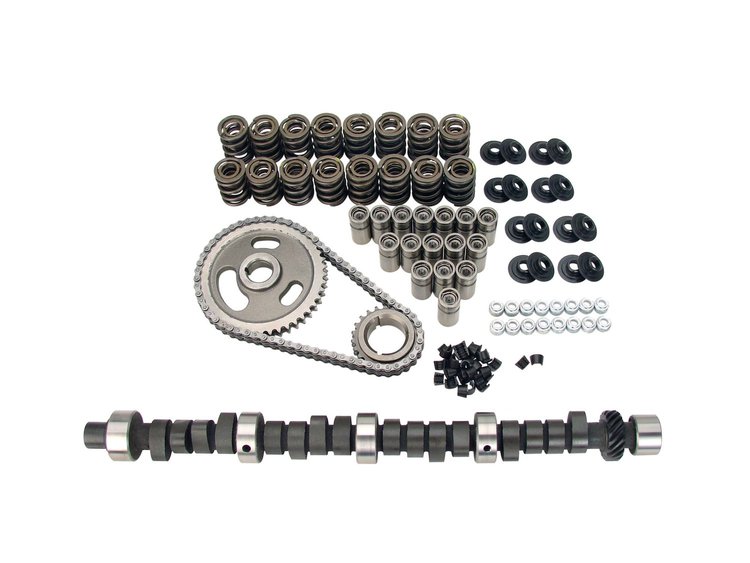

Xtreme Hi-Lift Hyd. Flat Tappet Cam Complete Kit Chrysler 273-360ci 1964-2000 Lift: .564"/.564"
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.
Chrysler 273-360ci 1964-2000
- Xtreme Hi-Lift Hyd. Flat Tappet Cam Complete Kit
- Lift: .564"/.564"
- Duration: 295°/307°
- Lobe Separation Angle: 110°
- RPM Range: 3000-6800
- Produces Better Throttle Response
- Produces Top Engine Horsepower
- Delivers Increased Engine Vacuum
- 1 Year Limited Warranty
273, 360, 318, AMC, Dodge, Mopar, Plymouth, Dart, Road Runner, Charger, Challenger, 383, 400, 440, 426, HEMI, 426 Wedge, 426 HEMI, RB, B, HEMI, 392, Chrysler, LA
Max effort street/bracket race cam. Likes ported heads and single plane intake, 3500+ stall with 10:1 compression.
Chrysler 273-360ci 1964-2000
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Part TypeCamshaft Kit
BrandCOMP CAMS
Package Height5.0
Package Width10.25
Package Length25.5
Weight27.0 PG
Part CategoryPerformance Parts
Exh. Duration @ .050 In. (Deg)257
Cam StyleHydraulic flat tappet
Grind NumberXE295HL
Exh. Duration Advertised (Deg)304
Locks IncludedYes
Engine Make/SizeMopar V8
Retainers IncludedYes
Intake Valve Lift With Factory Rocker Arm Ratio (I0.564
Int. Duration @ .050 In. (Deg)251
Assembly Lubricant IncludedYes
Basic Operating Rpm Range3,000-6,800
Pushrods IncludedNo
Gaskets IncludedNo
Rocker Arms IncludedNo
Intake Valve Lift0.564 in (14.326 mm)
Computer-Controlled CompatibleNo
Int. Duration Advertised (Deg)295
Lobe Separation (Deg)110
Rpm Range3000-6800
Lifter StyleHydraulic flat tappet
Advertised Duration295 int./307 exh.
Exhaust Valve Lift With Factory Rocker Arm Ratio (0.564
Valve Springs IncludedYes
UsageStreet/Performance
Valve Lift With Factory Rocker Arm Ratio0.564 int./0.564 exh.
QuantitySold as a kit
Valve Stem Seals IncludedYes
Exhaust Valve Lift0.564 in (14.326 mm)
Advertised Intake Duration295
Outside Diameter Of Outer Spring1.46 in (37.1 mm)
Intake Duration At 050 Inch Lift251
Exhaust Duration At 050 Inch Lift257
Timing Chain StyleDouble roller
Timing Chain And Gears IncludedYes
Advertised Exhaust Duration307
Lifter TypeHydraulic Flat Tappet
Part FitmentSemi Universal
Duration At 050 Inch Lift251 int./257 exh.
Valve Springs RequiredNo
Lifters IncludedYes
Vendor Part NumberK20-229-4
Package Qty1
Package TypeEA
