Vehicle Info NeededCOMP CAMSPART NUMBER: 249-K20-232-4

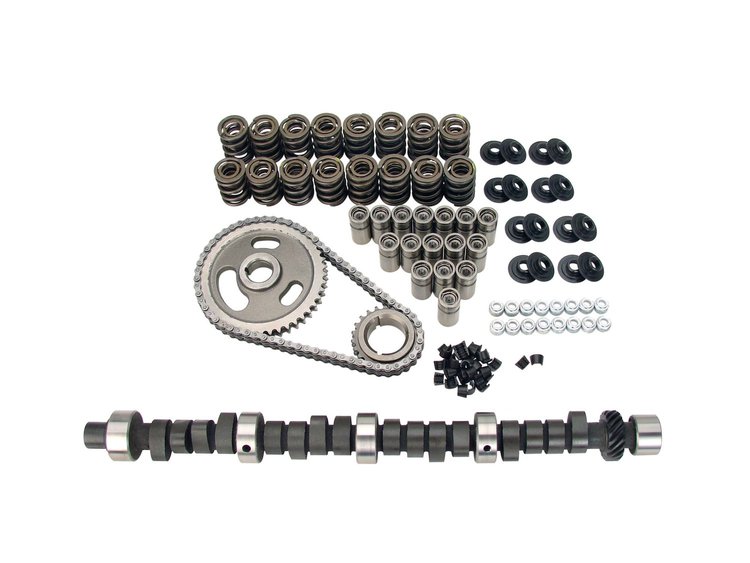

Magnum 280H Hydraulic Flat Tappet Camshaft Complete Kit Lift .480"/.480" Duration 280°/280° RPM Range 2500-6000
$69595
Ships on 10/23/2026
Lowest Price GuaranteeChrysler 273-360ci Small Block 1964-2000
- Magnum 280H Hydraulic Flat Tappet Camshaft Complete Kit
- Cams Are Very Aggressive
- Designed For Performance Oriented Vehicles
- Deliver More Power Than Standard Camshafts
- 1 Year Limited Warranty
273, 360, 318, AMC, Dodge, Mopar, Plymouth, Dart, Road Runner, Charger, Challenger, 383, 400, 440, 426, HEMI, 426 Wedge, 426 HEMI, RB, B, HEMI, 392, Chrysler, LA
Use in 340-360 street machine. Dual exhaust, 3.53-3.91 gear, 9:1 compression. Headers and aftermarket intake, 2500 stall.
Lift .480"/.480"
Duration 280°/280°
RPM Range 2500-6000
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Part TypeCamshaft Kit
BrandCOMP CAMS
Package Height5.0
Package Width11.5
Package Length25.0
Weight24.0 PG
Part CategoryPerformance Parts
Exh. Duration @ .050 In. (Deg)230
Cam StyleHydraulic flat tappet
Grind NumberCRS 280H-10
Exh. Duration Advertised (Deg)280
Locks IncludedYes
Engine Make/SizeMopar 273-360
Retainers IncludedYes
Intake Valve Lift With Factory Rocker Arm Ratio (I0.48
Int. Duration @ .050 In. (Deg)230
Assembly Lubricant IncludedYes
Basic Operating Rpm Range2,500-6,000
Pushrods IncludedNo
Gaskets IncludedNo
Rocker Arms IncludedNo
Intake Valve Lift0.48 in (12.192 mm)
Computer-Controlled CompatibleNo
Int. Duration Advertised (Deg)280
Lobe Separation (Deg)110
Rpm Range2500-6000
Lifter StyleHydraulic flat tappet
Advertised Duration280 int./280 exh.
Exhaust Valve Lift With Factory Rocker Arm Ratio (0.48
Valve Springs IncludedYes
UsageStreet/Strip
Valve Lift With Factory Rocker Arm Ratio0.480 int./0.480 exh.
QuantitySold as a kit
Valve Stem Seals IncludedYes
Exhaust Valve Lift0.48 in (12.192 mm)
Advertised Intake Duration280
Outside Diameter Of Outer Spring1.494 in (37.9 mm)
Intake Duration At 050 Inch Lift230
Exhaust Duration At 050 Inch Lift230
Timing Chain StyleLink belt
Timing Chain And Gears IncludedYes
Advertised Exhaust Duration280
Lifter TypeHydraulic Flat Tappet
Duration At 050 Inch Lift230 int./230 exh.
Valve Springs RequiredNo
Lifters IncludedYes
Vendor Part NumberK20-232-4
Package Qty1
Package TypeEA
