COMP CAMSPART NUMBER: 249-K20-233-4

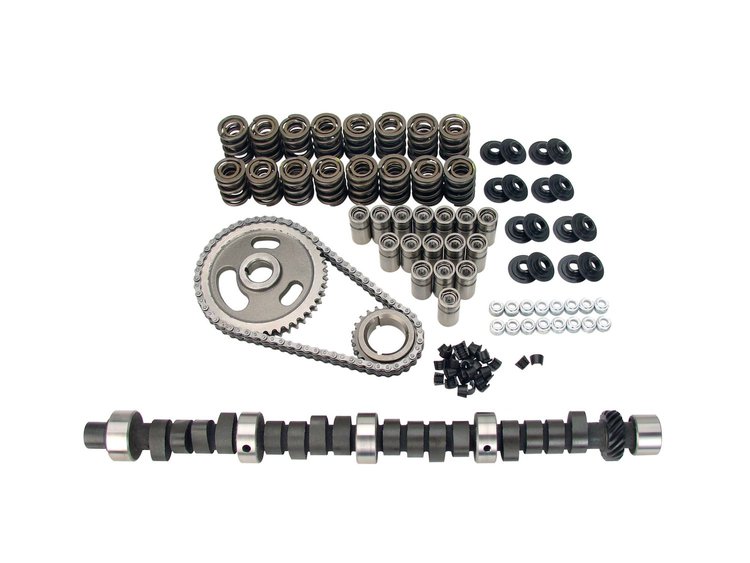

Xtreme Energy Mechanical Flat Camshaft Complete Kit Lift: .488"/.501"
$80595
Chrysler 273-360 C.I. 8 CYL. 1964-2000
- Xtreme Energy Mechanical Flat Camshaft Complete Kit
- Lift: .488"/.501"
- Duration: 268°/274°
- Lobe Separation Angle: 110°
- RPM Range 2000-6000
- Produces Better Throttle Response
- Produces Top Engine Horsepower
- Delivers Increased Engine Vacuum
- 1 Year Limited Warranty
273, 360, 318, AMC, Dodge, Mopar, Plymouth, Dart, Road Runner, Charger, Challenger, 383, 400, 440, 426, HEMI, 426 Wedge, 426 HEMI, RB, B, HEMI, 392, Chrysler, LA
340-360 street/strip use. 9:1 compression with 2500 stall, strong mid-range.
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Part TypeCamshaft Kit
BrandCOMP CAMS
Package Height5.2
Package Width10.3
Package Length25.2
Weight25.25 PG
Part CategoryPerformance Parts
UsageStreet/Hi-Performance
Intake Valve Lift0.488 in (12.395 mm)
Int. Duration Advertised (Deg)230
Exh. Duration @ .050 In. (Deg)236
Rpm Range2000-6000
Lifter TypeMechanical Flat Tappet
Exh. Duration Advertised (Deg)274
Engine Make/SizeMopar 273-360
Int. Duration @ .050 In. (Deg)230
Exhaust Valve Lift0.501 in (12.725 mm)
Vendor Part NumberK20-233-4
Package Qty1
Package TypeEA
