Vehicle Info NeededCOMP CAMSPART NUMBER: 249-K20-247-4

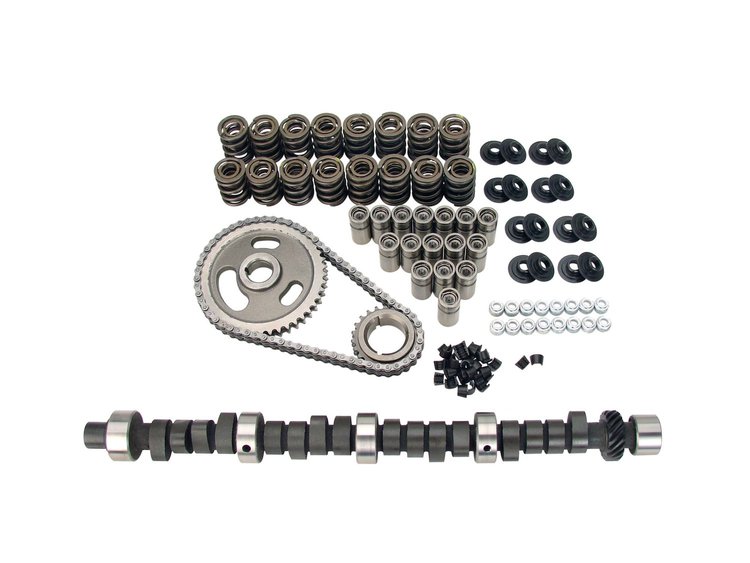

Comp Cams 'Magnum' Mechanical Flat Tappet Camshafts
$72995
Ships on 09/10/2026
Lowest Price GuaranteeChrysler 273-360ci Small Block 1964-2000
- Magnum 282S Mechanical Flat Tappet Camshaft Complete Kit
- Cams Are Very Aggressive
- Designed For Performance Oriented Vehicles
- Deliver More Power Than Standard Camshafts
- 1 Year Limited Warranty
273, 360, 318, AMC, Dodge, Mopar, Plymouth, Dart, Road Runner, Charger, Challenger, 383, 400, 440, 426, HEMI, 426 Wedge, 426 HEMI, RB, B, HEMI, 392, Chrysler, LA
340-360 street machine/bracket race with 2500 stall, 9.5:1-10.5:1 compression and 3.91 to 4.10 gear. Aftermarket manifold & 650-750 CFM carb.
Lift: .495"/.495"
Duration: 282°/282°
Lobe Separation Angle: 110°
RPM Range: 2500-6000
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Part TypeCamshaft Kit
BrandCOMP CAMS
Package Height5.0
Package Width10.5
Package Length26.0
Weight27.0 PG
Part CategoryPerformance Parts
Exh. Duration @ .050 In. (Deg)236
Cam StyleMechanical flat tappet
Grind Number282S
Exh. Duration Advertised (Deg)282
Locks IncludedYes
Engine Make/SizeMopar 273-360
Retainers IncludedYes
Intake Valve Lift With Factory Rocker Arm Ratio (I0.495
Int. Duration @ .050 In. (Deg)236
Assembly Lubricant IncludedYes
Basic Operating Rpm Range2,500-6,000
Pushrods IncludedNo
Gaskets IncludedNo
Intake Valve Lash0.022 in (0.559 mm)
Rocker Arms IncludedNo
Intake Valve Lift0.495 in (12.573 mm)
Computer-Controlled CompatibleNo
Int. Duration Advertised (Deg)282
Lobe Separation (Deg)110
Rpm Range3000-6000
Lifter StyleMechanical flat tappet
Advertised Duration282 int./282 exh.
Exhaust Valve Lift With Factory Rocker Arm Ratio (0.495
Valve Springs IncludedYes
UsageStreet/Strip
Valve Lift With Factory Rocker Arm Ratio0.495 int./0.495 exh.
QuantitySold as a kit
Valve Stem Seals IncludedYes
Exhaust Valve Lash0.022 in (0.559 mm)
Exhaust Valve Lift0.495 in (12.573 mm)
Advertised Intake Duration282
Outside Diameter Of Outer Spring1.437 in (36.5 mm)
Intake Duration At 050 Inch Lift236
Exhaust Duration At 050 Inch Lift236
Timing Chain StyleDouble roller
Timing Chain And Gears IncludedYes
Advertised Exhaust Duration282
Lifter TypeMechanical Flat Tappet
Duration At 050 Inch Lift236 int./236 exh.
Valve Springs RequiredNo
Lifters IncludedYes
Vendor Part NumberK20-247-4
Package Qty1
Package TypeEA
