Vehicle Info NeededCOMP CAMSPART NUMBER: 249-K20-740-9

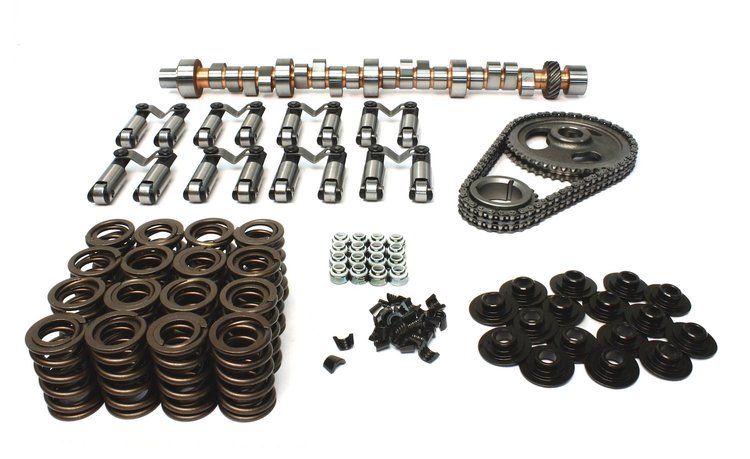

Xtreme Energy Mechanical Roller Camshaft Complete Kit Chrysler 273-360ci 1964-2000 Lift: .576"/.582"
$1,59195
Ships on 10/22/2026
Lowest Price GuaranteeChrysler 273-360 C.I. 8 CYL. 1964-2000
- Xtreme Energy Mechanical Roller Camshaft Complete Kit
- Lift: .576"/.582"
- Duration: 286°/292°
- Lobe Separation Angle: 110°
- RPM Range: 2800-6800
- Produces Better Throttle Response
- Produces Top Engine Horsepower
- Delivers Increased Engine Vacuum
- 1 Year Limited Warranty
273, 360, 318, AMC, Dodge, Mopar, Plymouth, Dart, Road Runner, Charger, Challenger, 383, 400, 440, 426, HEMI, 426 Wedge, 426 HEMI, RB, B, HEMI, 392, Chrysler, LA
3300+ stall with 10:1 compression. Strong top end with a racey idle.
Chrysler 273-360ci 1964-2000
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Part TypeCamshaft Kit
BrandCOMP CAMS
Package Height5.1
Package Width10.29
Package Length25.5
Weight25.53 PG
Part CategoryPerformance Parts
Exh. Duration @ .050 In. (Deg)254
Cam StyleMechanical roller tappet
Grind NumberXR286R
Exh. Duration Advertised (Deg)292
Locks IncludedYes
Engine Make/SizeMopar V8
Retainers IncludedYes
Intake Valve Lift With Factory Rocker Arm Ratio (I0.576
Int. Duration @ .050 In. (Deg)248
Assembly Lubricant IncludedNo
Basic Operating Rpm Range2,800-6,800
Pushrods IncludedNo
Gaskets IncludedNo
Intake Valve Lash0.016 in (0.406 mm)
Rocker Arms IncludedNo
Intake Valve Lift0.576 in (14.63 mm)
Computer-Controlled CompatibleNo
Int. Duration Advertised (Deg)286
Lobe Separation (Deg)110
Rpm Range2800-6800
Lifter StyleMechanical roller
Advertised Duration286 int./292 exh.
Exhaust Valve Lift With Factory Rocker Arm Ratio (0.582
Valve Springs IncludedYes
UsageStreet/Performance
Valve Lift With Factory Rocker Arm Ratio0.576 int./0.582 exh.
QuantitySold as a kit
Valve Stem Seals IncludedYes
Exhaust Valve Lash0.018 in (0.457 mm)
Exhaust Valve Lift0.582 in (14.783 mm)
Advertised Intake Duration286
Outside Diameter Of Outer Spring1.489 in (37.8 mm)
Intake Duration At 050 Inch Lift248
Exhaust Duration At 050 Inch Lift254
Timing Chain StyleDouble roller
Timing Chain And Gears IncludedYes
Advertised Exhaust Duration292
Lifter TypeMechanical Roller
Duration At 050 Inch Lift248 int./254 exh.
Valve Springs RequiredNo
Lifters IncludedYes
Vendor Part NumberK20-740-9
Package Qty1
Package TypeEA
