Vehicle Info NeededCOMP CAMSPART NUMBER: 249-K23-703-9

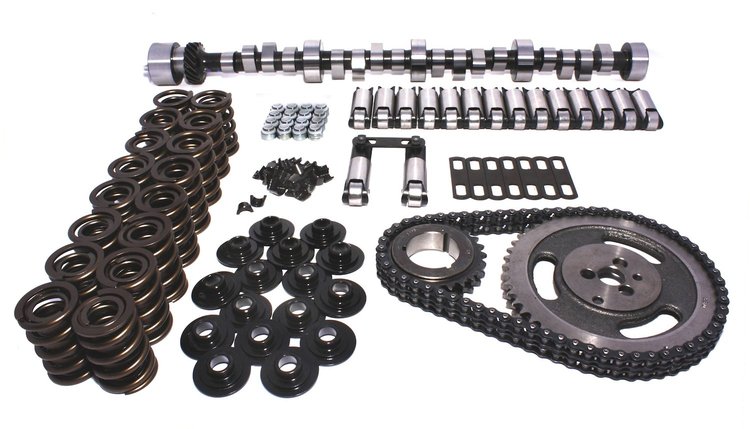

Xtreme Energy Mechanical Roller Camshaft Complete Kit Chrysler 383-440ci 1959-1980 Three Bolt Lift: .582"/.588"
$1,76095
Ships on 10/22/2026
Lowest Price GuaranteeChrysler 383-440 C.I. 8 CYL. 1959-1980
- Xtreme Energy Mechanical Roller Camshaft Complete Kit
- Lift: .582"/.588"
- Duration: 292°/297°
- Lobe Separation Angle: 110°
- RPM Range: 3500-6600
- Produces Better Throttle Response
- Produces Top Engine Horsepower
- Delivers Increased Engine Vacuum
- 1 Year Limited Warranty
273, 360, 318, AMC, Dodge, Mopar, Plymouth, Dart, Road Runner, Charger, Challenger, 383, 400, 440, 426, HEMI, 426 Wedge, 426 HEMI, RB, B, HEMI, 392, Chrysler, LA
Strong mid to upper RPM power, 10.5:1 compression with 3500+ stall. Radical idle.
Chrysler 383-440ci 1959-1980 Three Bolt
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Part TypeCamshaft Kit
BrandCOMP CAMS
Package Height5.4
Package Width10.6
Package Length25.2
Weight27.05 PG
Part CategoryPerformance Parts
Exh. Duration @ .050 In. (Deg)260
Cam StyleMechanical roller tappet
Grind NumberXR292R
Exh. Duration Advertised (Deg)297
Locks IncludedYes
Engine Make/SizeMopar V8
Retainers IncludedYes
Intake Valve Lift With Factory Rocker Arm Ratio (I0.582
Int. Duration @ .050 In. (Deg)254
Assembly Lubricant IncludedNo
Basic Operating Rpm Range3,500-6,600
Pushrods IncludedNo
Gaskets IncludedNo
Intake Valve Lash0.016 in (0.406 mm)
Rocker Arms IncludedNo
Intake Valve Lift0.582 in (14.783 mm)
Computer-Controlled CompatibleNo
Int. Duration Advertised (Deg)292
Lobe Separation (Deg)110
Rpm Range3500-6600
Lifter StyleMechanical roller
Advertised Duration292 int./297 exh.
Exhaust Valve Lift With Factory Rocker Arm Ratio (0.588
Valve Springs IncludedYes
UsageStreet/Performance
Valve Lift With Factory Rocker Arm Ratio0.582 int./0.588 exh.
Camshaft Gear Attachment3-bolt
QuantitySold as a kit
Valve Stem Seals IncludedYes
Exhaust Valve Lash0.018 in (0.457 mm)
Exhaust Valve Lift0.588 in (14.935 mm)
Advertised Intake Duration292
Outside Diameter Of Outer Spring1.535 in (39 mm)
Intake Duration At 050 Inch Lift254
Exhaust Duration At 050 Inch Lift260
Timing Chain StyleDouble non-roller
Timing Chain And Gears IncludedYes
Advertised Exhaust Duration297
Lifter TypeMechanical Roller
Part FitmentSemi Universal
Duration At 050 Inch Lift254 int./260 exh.
Valve Springs RequiredNo
Lifters IncludedYes
Vendor Part NumberK23-703-9
Package Qty1
Package TypeEA
