Vehicle Info NeededCOMP CAMSPART NUMBER: 249-K23-741-9

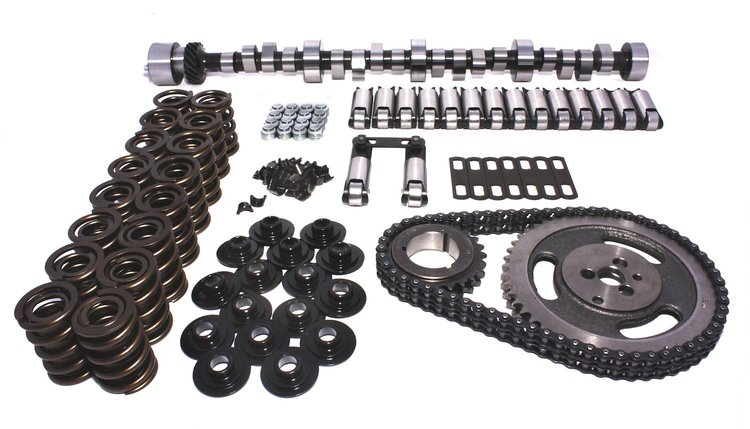

Magnum Mechanical Roller Cam Complete Kit Chrysler 383-440ci 1959-1980 Lift: .550"/.550"
$1,76095
Ships on 10/23/2026
Lowest Price GuaranteeChrysler 383-440ci 1959-1980
- Magnum Mechanical Roller Cam Complete Kit
- Lift: .550"/.550"
- Duration: 288°/288°
- Lobe Separation Angle: 110°
- RPM Range: 3000-6200
- Cams Are Very Aggressive
- Designed For Performance Oriented Vehicles
- Deliver More Power Than Standard Camshafts
- 1 Year Limited Warranty
273, 360, 318, AMC, Dodge, Mopar, Plymouth, Dart, Road Runner, Charger, Challenger, 383, 400, 440, 426, HEMI, 426 Wedge, 426 HEMI, RB, B, HEMI, 392, Chrysler, LA
Chrysler 383-440ci 1959-1980
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Part TypeCamshaft Kit
BrandCOMP CAMS
Package Height5.0
Package Width10.25
Package Length25.5
Weight16.0 PG
Part CategoryPerformance Parts
Exh. Duration @ .050 In. (Deg)243
Cam StyleMechanical roller tappet
Grind Number288R-10
Exh. Duration Advertised (Deg)288
Locks IncludedYes
Engine Make/SizeMopar V8
Retainers IncludedYes
Intake Valve Lift With Factory Rocker Arm Ratio (I0.55
Int. Duration @ .050 In. (Deg)243
Assembly Lubricant IncludedNo
Basic Operating Rpm Range3,000-6,200
Pushrods IncludedNo
Gaskets IncludedNo
Intake Valve Lash0.02 in (0.508 mm)
Rocker Arms IncludedNo
Intake Valve Lift0.55 in (13.97 mm)
Computer-Controlled CompatibleNo
Int. Duration Advertised (Deg)288
Lobe Separation (Deg)110
Rpm Range3000-6200
Lifter StyleMechanical roller
Advertised Duration288 int./288 exh.
Exhaust Valve Lift With Factory Rocker Arm Ratio (0.55
Valve Springs IncludedYes
UsageStreet/Strip
Valve Lift With Factory Rocker Arm Ratio0.550 int./0.550 exh.
Camshaft Gear Attachment3-bolt
QuantitySold as a kit
Valve Stem Seals IncludedYes
Exhaust Valve Lash0.02 in (0.508 mm)
Exhaust Valve Lift0.55 in (13.97 mm)
Advertised Intake Duration288
Outside Diameter Of Outer Spring1.535 in (39 mm)
Intake Duration At 050 Inch Lift243
Exhaust Duration At 050 Inch Lift243
Timing Chain StyleDouble roller
Timing Chain And Gears IncludedYes
Advertised Exhaust Duration288
Lifter TypeMechanical Roller
Duration At 050 Inch Lift243 int./243 exh.
Valve Springs RequiredNo
Lifters IncludedYes
Vendor Part NumberK23-741-9
Package Qty1
Package TypeEA
