Vehicle Info NeededCOMP CAMSPART NUMBER: 249-K31-333-4

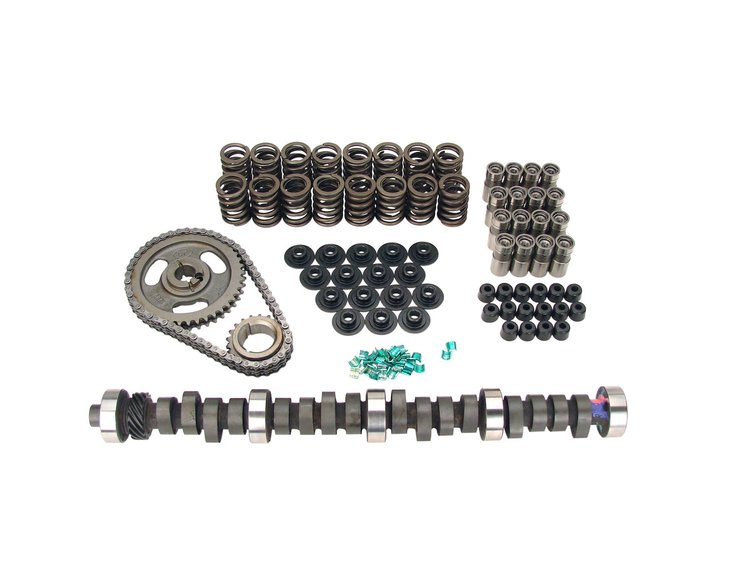

Comp Cams 'Magnum' Mechanical Flat Tappet Camshafts
$69795
Ships on 10/19/2026
Lowest Price GuaranteeFord 289-302 ci. 8cyl. 1963-95
- Magnum 270S Mechanical Flat Tappet Camshaft Complete Kit
- Cams Are Very Aggressive
- Designed For Performance Oriented Vehicles
- Deliver More Power Than Standard Camshafts
- 1 Year Limited Warranty
Ford; SBF; Mustang; Windsor; Fairlane; Meteor; Mercury; GT; 22; 260; Sunbeam; Tiger; 289; 302; 351; 289; HiPo; K-Code; GT-350; Shelby; Boss; 5.0; 308; Windsor; Torino; Cougar; F-150; Squire; Thunderbird; LTD; Galaxie; Grand Marquis
Daily usage in performance vehicles. Broad power, good driveability, stock gear and compression. Mild rough idle. 2000 converter recommended.
Lift: .499"/.499"
Duration: 270°/270°
Lobe Separation Angle: 110°
RPM Range: 1800-5800
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Part TypeCamshaft Kit
BrandCOMP CAMS
Package Height5.0
Package Width10.3
Package Length25.5
Weight23.6 PG
Part CategoryPerformance Parts
Exh. Duration @ .050 In. (Deg)236
Cam StyleMechanical flat tappet
Grind NumberFS 270S-10
Exh. Duration Advertised (Deg)282
Locks IncludedYes
Engine Make/SizeFord 289-302
Retainers IncludedYes
Intake Valve Lift With Factory Rocker Arm Ratio (I0.499
Int. Duration @ .050 In. (Deg)236
Assembly Lubricant IncludedYes
Basic Operating Rpm Range1,800-5,800
Pushrods IncludedNo
Gaskets IncludedNo
Intake Valve Lash0.022 in (0.559 mm)
Rocker Arms IncludedNo
Intake Valve Lift0.499 in (12.675 mm)
Computer-Controlled CompatibleNo
Int. Duration Advertised (Deg)282
Lobe Separation (Deg)110
Rpm Range1800-5800
Lifter StyleMechanical flat tappet
Advertised Duration270 int./270 exh.
Exhaust Valve Lift With Factory Rocker Arm Ratio (0.499
Valve Springs IncludedYes
UsageStreet/Strip
Valve Lift With Factory Rocker Arm Ratio0.499 int./0.499 exh.
QuantitySold as a kit
Valve Stem Seals IncludedYes
Exhaust Valve Lash0.022 in (0.559 mm)
Exhaust Valve Lift0.499 in (12.675 mm)
Advertised Intake Duration270
Outside Diameter Of Outer Spring1.437 in (36.5 mm)
Intake Duration At 050 Inch Lift224
Exhaust Duration At 050 Inch Lift224
Timing Chain StyleDouble non-roller
Timing Chain And Gears IncludedYes
Advertised Exhaust Duration270
Lifter TypeMechanical Flat Tappet
Part FitmentSemi Universal
Duration At 050 Inch Lift224 int./224 exh.
Valve Springs RequiredNo
Lifters IncludedYes
Vendor Part NumberK31-333-4
Package Qty1
Package TypeEA
