Comp Cams 'Magnum' Mechanical Flat Tappet Camshafts

Vehicle Info Needed

COMP CAMSPART NUMBER: 249-K31-334-4

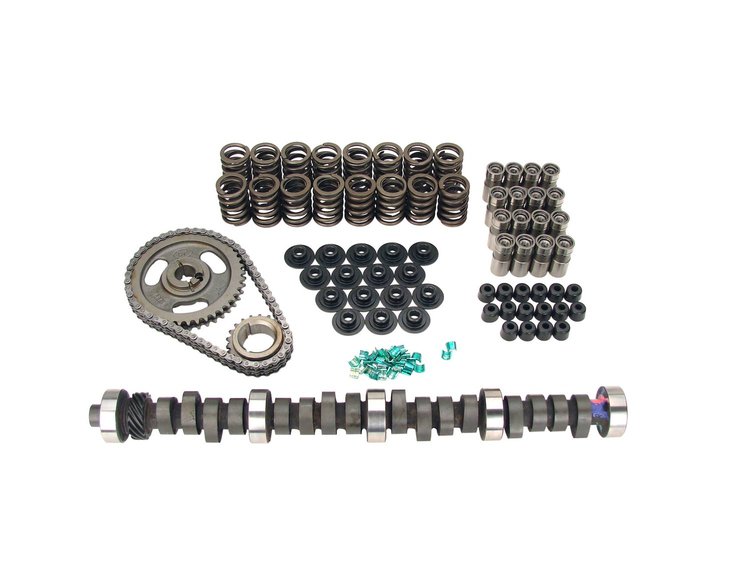

Comp Cams 'Magnum' Mechanical Flat Tappet Camshafts

Name: Comp Cams 'Magnum' Mechanical Flat Tappet Camshafts
Brand: COMP CAMS
SKU: 249-K31-334-4
Price: 711.95 USD
Availability: InStock

^$711⁹⁵

Ships on 10/19/2026

Lowest Price Guarantee

Ford 289-302 ci. 8cyl. 1963-95

.528"/.528"

282°/282°

110°

2000-6000

Cams Are Very Aggressive
Designed For Performance Oriented Vehicles
Deliver More Power Than Standard Camshafts
1 Year Limited Warranty
Ford; SBF; Mustang; Windsor; Fairlane; Meteor; Mercury; GT; 22; 260; Sunbeam; Tiger; 289; 302; 351; 289; HiPo; K-Code; GT-350; Shelby; Boss; 5.0; 308; Windsor; Torino; Cougar; F-150; Squire; Thunderbird; LTD; Galaxie; Grand Marquis

Performance cam for street machines. Lower axle ratio and 2500+ stall with headers. Rough idle. Magnum Muscle Camshaft for 289c.i. 1965-68, factory 271 HP.

Emissions Note:

This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART

Part TypeCamshaft Kit

BrandCOMP CAMS

Package Height5.3

Package Width10.4

Package Length25.2

Weight23.79 PG

Part CategoryPerformance Parts

Exh. Duration @ .050 In. (Deg)236

Cam StyleMechanical flat tappet

Grind NumberFS 282S-10

Exh. Duration Advertised (Deg)282

Locks IncludedYes

Engine Make/SizeFord 289-302

Retainers IncludedYes

Intake Valve Lift With Factory Rocker Arm Ratio (I0.528

Int. Duration @ .050 In. (Deg)236

Assembly Lubricant IncludedYes

Basic Operating Rpm Range2,000-6,000

Pushrods IncludedNo

Gaskets IncludedNo

Intake Valve Lash0.022 in (0.559 mm)

Rocker Arms IncludedNo

Intake Valve Lift0.528 in (13.411 mm)

Computer-Controlled CompatibleNo

Int. Duration Advertised (Deg)282

Lobe Separation (Deg)110

Rpm Range2000-6000

Lifter StyleMechanical flat tappet

Advertised Duration282 int./282 exh.

Exhaust Valve Lift With Factory Rocker Arm Ratio (0.528

Valve Springs IncludedYes

UsageStreet/Strip

Valve Lift With Factory Rocker Arm Ratio0.528 int./0.528 exh.

QuantitySold as a kit

Valve Stem Seals IncludedYes

Exhaust Valve Lash0.022 in (0.559 mm)

Exhaust Valve Lift0.528 in (13.411 mm)

Advertised Intake Duration282

Outside Diameter Of Outer Spring1.437 in (36.5 mm)

Intake Duration At 050 Inch Lift236

Exhaust Duration At 050 Inch Lift236

Timing Chain StyleDouble non-roller

Timing Chain And Gears IncludedYes

Advertised Exhaust Duration282

Lifter TypeMechanical Flat Tappet

Duration At 050 Inch Lift236 int./236 exh.

Valve Springs RequiredNo

Lifters IncludedYes

Vendor Part NumberK31-334-4

Package Qty1

Package TypeEA
