Vehicle Info NeededCOMP CAMSPART NUMBER: 249-K31-336-4

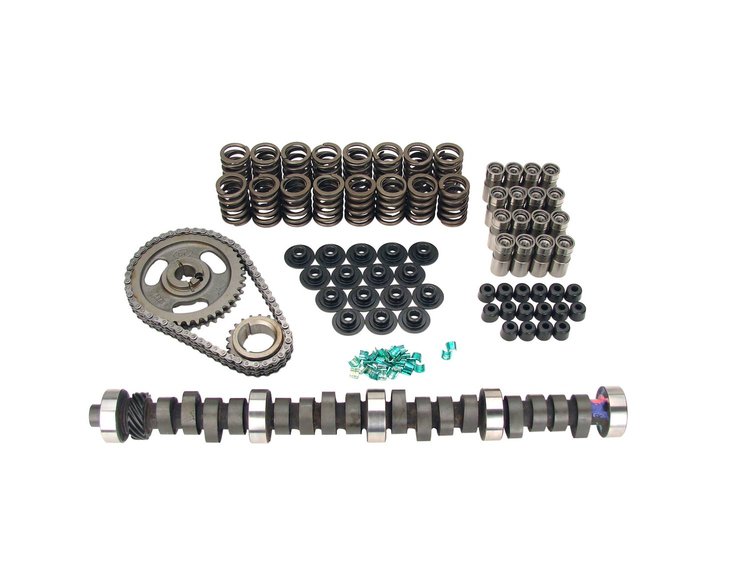

Comp Cams 'Magnum' Mechanical Flat Tappet Camshafts
$62995
Ships on 09/10/2026
Lowest Price GuaranteeFord 289-302 ci. 8cyl. 1963-95
- Magnum 306S Mechanical Flat Tappet Camshaft Complete Kit
- Cams Are Very Aggressive
- Designed For Performance Oriented Vehicles
- Deliver More Power Than Standard Camshafts
- 1 Year Limited Warranty
Ford; SBF; Mustang; Windsor; Fairlane; Meteor; Mercury; GT; 22; 260; Sunbeam; Tiger; 289; 302; 351; 289; HiPo; K-Code; GT-350; Shelby; Boss; 5.0; 308; Windsor; Torino; Cougar; F-150; Squire; Thunderbird; LTD; Galaxie; Grand Marquis
Limited street use, with 4000+ stall or 4 speed, with 4.10 or lower gear.
Lift: .592"/.592"
Duration: 306°/306°
Lobe Separation Angle: 110°
RPM Range: 3000-7000
Part TypeCamshaft Kit
BrandCOMP CAMS
Package Height5.0
Package Width11.5
Package Length25.0
Weight25.0 PG
Part CategoryPerformance Parts
Exh. Duration @ .050 In. (Deg)260
Cam StyleMechanical flat tappet
Grind NumberFS 306S-10
Exh. Duration Advertised (Deg)306
Locks IncludedYes
Engine Make/SizeFord 289-302
Retainers IncludedYes
Intake Valve Lift With Factory Rocker Arm Ratio (I0.592
Int. Duration @ .050 In. (Deg)260
Assembly Lubricant IncludedYes
Basic Operating Rpm Range3,000-7,000
Pushrods IncludedNo
Gaskets IncludedNo
Intake Valve Lash0.022 in (0.559 mm)
Rocker Arms IncludedNo
Intake Valve Lift0.592 in (15.037 mm)
Computer-Controlled CompatibleNo
Int. Duration Advertised (Deg)306
Lobe Separation (Deg)110
Rpm Range3000-7000
Lifter StyleMechanical flat tappet
Advertised Duration306 int./306 exh.
Exhaust Valve Lift With Factory Rocker Arm Ratio (0.592
Valve Springs IncludedYes
UsageStreet/Strip
Valve Lift With Factory Rocker Arm Ratio0.592 int./0.592 exh.
QuantitySold as a kit
Valve Stem Seals IncludedYes
Exhaust Valve Lash0.022 in (0.559 mm)
Exhaust Valve Lift0.592 in (15.037 mm)
Advertised Intake Duration306
Outside Diameter Of Outer Spring1.43 in (36.3 mm)
Intake Duration At 050 Inch Lift260
Exhaust Duration At 050 Inch Lift260
Timing Chain StyleDouble non-roller
Timing Chain And Gears IncludedYes
Advertised Exhaust Duration306
Lifter TypeMechanical Flat Tappet
Duration At 050 Inch Lift260 int./260 exh.
Valve Springs RequiredNo
Lifters IncludedYes
Vendor Part NumberK31-336-4
Package Qty1
Package TypeEA
