COMP CAMSPART NUMBER: 249-K31-422-8

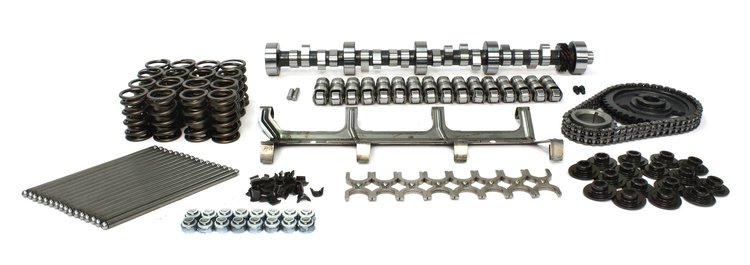

Magnum Hydraulic Roller Camshaft Complete Kit Ford 289-302 1963-95 Retro-Fit Lift: .533"/.533"
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.
Ford 289-302ci 1963-1995Retro-Fit Non-EFI
- Magnum Hydraulic Roller Camshaft Complete Kit
- Lift: .533"/.533"
- Duration: 270°/270°
- Lobe Separation Angle: 110°
- RPM Range: 1800-5000
- For engines that DID NOT come from the factory with hydraulic roller cams, NOT FOR E.F.I.
- Cams Are Very Aggressive
- Designed For Performance Oriented Vehicles
- Deliver More Power Than Standard Camshafts
- 1 Year Limited Warranty
Ford 289-302 1963-95 Retro-Fit
Part TypeCamshaft Kit
BrandCOMP CAMS
Package Height5.0
Package Width11.5
Package Length25.0
Weight26.0 PG
Part CategoryPerformance Parts
Exh. Duration @ .050 In. (Deg)215
Cam StyleHydraulic roller tappet
Grind Number260HR
Exh. Duration Advertised (Deg)270
Locks IncludedYes
Engine Make/SizeFord 289-302
Retainers IncludedYes
Intake Valve Lift With Factory Rocker Arm Ratio (I0.533
Int. Duration @ .050 In. (Deg)215
Assembly Lubricant IncludedNo
Basic Operating Rpm Range1,800-5,000
Pushrods IncludedNo
Gaskets IncludedNo
Rocker Arms IncludedNo
Intake Valve Lift0.533 in (13.538 mm)
Computer-Controlled CompatibleNo
Int. Duration Advertised (Deg)270
Lobe Separation (Deg)110
Rpm Range1800-5000
Lifter StyleHydraulic roller
Advertised Duration270 int./270 exh.
Exhaust Valve Lift With Factory Rocker Arm Ratio (0.533
Valve Springs IncludedYes
UsageStreet/Strip
Valve Lift With Factory Rocker Arm Ratio0.533 int./0.533 exh.
QuantitySold as a kit
Valve Stem Seals IncludedYes
Exhaust Valve Lift0.533 in (13.538 mm)
Advertised Intake Duration270
Outside Diameter Of Outer Spring1.43 in (36.3 mm)
Intake Duration At 050 Inch Lift215
Exhaust Duration At 050 Inch Lift215
Timing Chain StyleDouble roller
Timing Chain And Gears IncludedYes
Advertised Exhaust Duration270
Lifter TypeHydraulic Roller
Duration At 050 Inch Lift215 int./215 exh.
Valve Springs RequiredNo
Lifters IncludedYes
Vendor Part NumberK31-422-8
Package Qty1
Package TypeEA
