Product Discontinued
COMP CAMSPART NUMBER: 249-K31-761-8

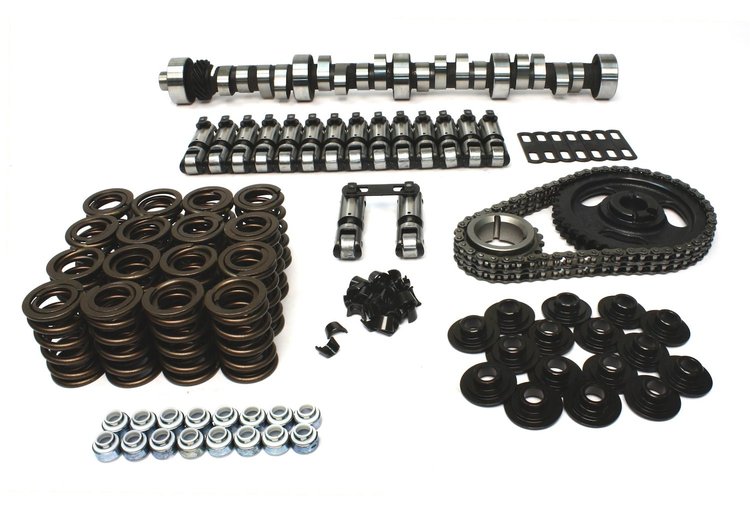

Magnum Mechanical Roller Cam Complete Kit Ford 289-302ci 1963-1995 Lift: .613"/.613"
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.
Ford 289-302ci 1963-1995
- Magnum Mechanical Roller Cam Complete Kit
- Lift: .613"/.613"
- Duration: 308°/308°
- Lobe Separation Angle: 110°
- RPM Range: 3000-7000
- Cams Are Very Aggressive
- Designed For Performance Oriented Vehicles
- Deliver More Power Than Standard Camshafts
- 1 Year Limited Warranty
Ford; SBF; Mustang; Windsor; Fairlane; Meteor; Mercury; GT; 22; 260; Sunbeam; Tiger; 289; 302; 351; 289; HiPo; K-Code; GT-350; Shelby; Boss; 5.0; 308; Windsor; Torino; Cougar; F-150; Squire; Thunderbird; LTD; Galaxie; Grand Marquis
Ultimate in Pro Street. 3500+ stall, 4.10 or lower gear. Radical idle.
Ford 289-302ci 1963-1995
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Part TypeCamshaft Kit
BrandCOMP CAMS
Package Height5.0
Package Width11.5
Package Length25.0
Weight10.0 PG
Part CategoryPerformance Parts
Exh. Duration @ .050 In. (Deg)264
Cam StyleMechanical roller tappet
Grind Number308R
Exh. Duration Advertised (Deg)308
Locks IncludedYes
Engine Make/SizeFord 289-302
Retainers IncludedYes
Intake Valve Lift With Factory Rocker Arm Ratio (I0.613
Int. Duration @ .050 In. (Deg)264
Assembly Lubricant IncludedNo
Basic Operating Rpm Range3,000-7,000
Pushrods IncludedNo
Gaskets IncludedNo
Intake Valve Lash0.02 in (0.508 mm)
Rocker Arms IncludedNo
Intake Valve Lift0.613 in (15.57 mm)
Computer-Controlled CompatibleNo
Int. Duration Advertised (Deg)308
Lobe Separation (Deg)110
Rpm Range3000-7000
Lifter StyleMechanical roller
Advertised Duration308 int./308 exh.
Exhaust Valve Lift With Factory Rocker Arm Ratio (0.613
Valve Springs IncludedYes
UsageStreet/Strip
Valve Lift With Factory Rocker Arm Ratio0.613 int./0.613 exh.
QuantitySold as a kit
Valve Stem Seals IncludedYes
Exhaust Valve Lash0.02 in (0.508 mm)
Exhaust Valve Lift0.613 in (15.57 mm)
Advertised Intake Duration308
Outside Diameter Of Outer Spring1.489 in (37.8 mm)
Intake Duration At 050 Inch Lift264
Exhaust Duration At 050 Inch Lift264
Timing Chain StyleDouble non-roller
Timing Chain And Gears IncludedYes
Advertised Exhaust Duration308
Lifter TypeMechanical Roller
Part FitmentSemi Universal
Duration At 050 Inch Lift264 int./264 exh.
Valve Springs RequiredNo
Lifters IncludedYes
Vendor Part NumberK31-761-8
Package Qty1
Package TypeEA
