Vehicle Info NeededCOMP CAMSPART NUMBER: 249-K32-225-4
Magnum 280H Hydraulic Flat Tappet Camshaft Complete Kit Lift .530"/.530" Duration 280°/280° RPM Range 2000-6000
$68095
Ships on 10/23/2026
Lowest Price GuaranteeFord 351C, 351M-400M 1970-82

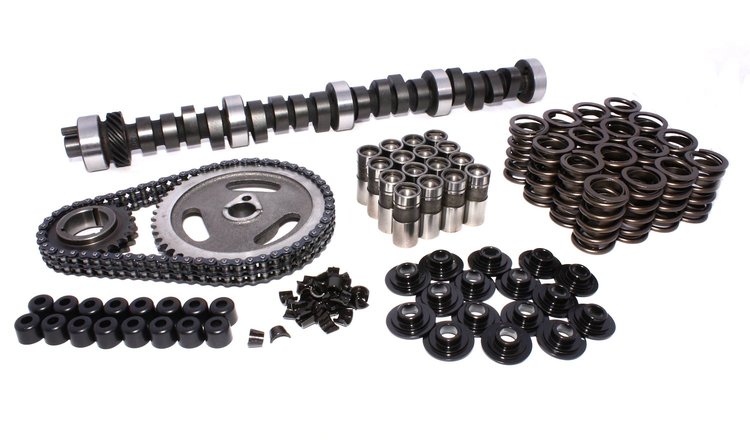

- Magnum 280H Hydraulic Flat Tappet Camshaft Complete Kit
Lift .530"/.530"
Duration 280°/280°
RPM Range 2000-6000
Good for street machine use. Good power. 2500+ stall, headers, low gears, 9:1-10:1 compression. Rough idle.
| Operating Range: | 2000-6000 RPM |
| Duration Advertised: | 280° Intake / 280° Exhaust |
| Duration @ .050' Lift: | 230° Intake / 230° Exhaust |
| Valve Lift w/1.73 Rockers: | .530' Intake / .530' Exhaust |
| Lobe Separation Angle: | 110° |
Ford, 351, 351 Cleveland, 400, 351 Modified, 400 Modified, Ford F100, Mach 1, Mustang
Good in street machine with 2500+ stall, headers, gears, 9:1-10:1 compression. Rough idle.
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Part TypeCamshaft Kit
BrandCOMP CAMS
Package Height5.0
Package Width11.5
Package Length25.0
Weight24.9 PG
Part CategoryPerformance Parts
Exh. Duration @ .050 In. (Deg)230
Cam StyleHydraulic flat tappet
Grind NumberFC 280H-10
Exh. Duration Advertised (Deg)280
Locks IncludedYes
Engine Make/SizeFord 351M-400
Retainers IncludedYes
Intake Valve Lift With Factory Rocker Arm Ratio (I0.53
Int. Duration @ .050 In. (Deg)230
Assembly Lubricant IncludedYes
Basic Operating Rpm Range2,000-6,000
Pushrods IncludedNo
Gaskets IncludedNo
Rocker Arms IncludedNo
Intake Valve Lift0.53 in (13.462 mm)
Computer-Controlled CompatibleNo
Int. Duration Advertised (Deg)280
Lobe Separation (Deg)110
Rpm Range2000-6000
Lifter StyleHydraulic flat tappet
Advertised Duration280 int./280 exh.
Exhaust Valve Lift With Factory Rocker Arm Ratio (0.53
Valve Springs IncludedYes
UsageStreet/Strip
Valve Lift With Factory Rocker Arm Ratio0.530 int./0.530 exh.
QuantitySold as a kit
Valve Stem Seals IncludedYes
Exhaust Valve Lift0.53 in (13.462 mm)
Advertised Intake Duration280
Outside Diameter Of Outer Spring1.46 in (37.1 mm)
Intake Duration At 050 Inch Lift230
Exhaust Duration At 050 Inch Lift230
Timing Chain StyleDouble non-roller
Timing Chain And Gears IncludedYes
Advertised Exhaust Duration280
Lifter TypeHydraulic Flat Tappet
Duration At 050 Inch Lift230 int./230 exh.
Valve Springs RequiredNo
Lifters IncludedYes
Vendor Part NumberK32-225-4
Package Qty1
Package TypeEA
