Vehicle Info NeededCOMP CAMSPART NUMBER: 249-K32-234-4

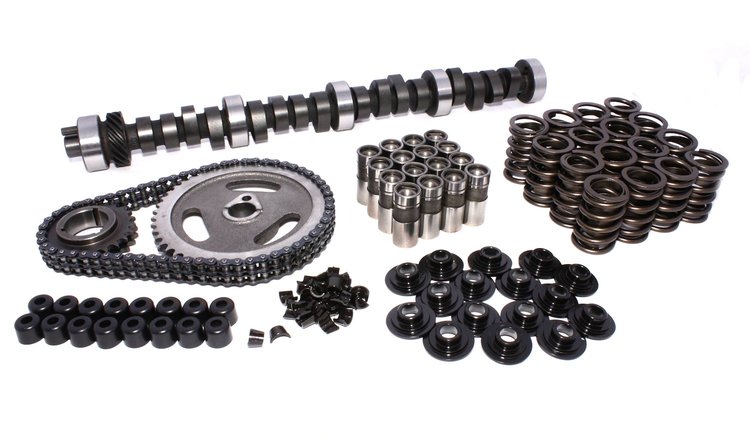

Magnum 292H Hydraulic Flat Tappet Camshaft Complete Kit Lift .560"/.560" Duration 292°/292° RPM Range 2500-6500
$70995
Ships on 10/23/2026
Lowest Price GuaranteeFord 351C, 351M-400M 1970-82
- Magnum 292H Hydraulic Flat Tappet Camshaft Complete Kit
Lift .560"/.560"
Duration 292°/292°
RPM Range 2500-6500
Hydraulic-Street / Strip use with 3000+ stall, 10:1 compression, low gears. Racy idle.
Ford, 351, 351 Cleveland, 400, 351 Modified, 400 Modified, Ford F100, Mach 1, Mustang
Street/strip use with 3000+ stall, 10:1 compression, low gears. Racy idle.
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Part TypeCamshaft Kit
BrandCOMP CAMS
Package Height5.3
Package Width10.8
Package Length25.5
Weight28.1 PG
Part CategoryPerformance Parts
Exh. Duration @ .050 In. (Deg)244
Cam StyleHydraulic flat tappet
Grind NumberFC 292H-10
Exh. Duration Advertised (Deg)292
Locks IncludedYes
Engine Make/SizeFord 351M-400
Retainers IncludedYes
Intake Valve Lift With Factory Rocker Arm Ratio (I0.56
Int. Duration @ .050 In. (Deg)244
Assembly Lubricant IncludedYes
Basic Operating Rpm Range2,500-6,500
Pushrods IncludedNo
Gaskets IncludedNo
Rocker Arms IncludedNo
Intake Valve Lift0.56 in (14.224 mm)
Computer-Controlled CompatibleNo
Int. Duration Advertised (Deg)292
Lobe Separation (Deg)110
Rpm Range2500-6500
Lifter StyleHydraulic flat tappet
Advertised Duration292 int./292 exh.
Exhaust Valve Lift With Factory Rocker Arm Ratio (0.56
Valve Springs IncludedYes
UsageStreet/Strip
Valve Lift With Factory Rocker Arm Ratio0.560 int./0.560 exh.
QuantitySold as a kit
Valve Stem Seals IncludedYes
Exhaust Valve Lift0.56 in (14.224 mm)
Advertised Intake Duration292
Outside Diameter Of Outer Spring1.509 in (38.3 mm)
Intake Duration At 050 Inch Lift244
Exhaust Duration At 050 Inch Lift244
Timing Chain StyleDouble non-roller
Timing Chain And Gears IncludedYes
Advertised Exhaust Duration292
Lifter TypeHydraulic Flat Tappet
Part FitmentSemi Universal
Duration At 050 Inch Lift244 int./244 exh.
Valve Springs RequiredNo
Lifters IncludedYes
Vendor Part NumberK32-234-4
Package Qty1
Package TypeEA
