Vehicle Info NeededCOMP CAMSPART NUMBER: 249-K32-250-4

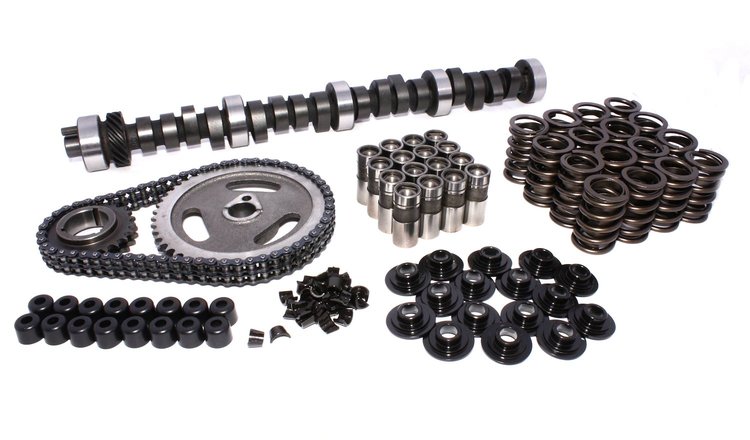

Xtreme Energy 284H Hydraulic Flat Tappet Camshaft Complete Kit Lift .584"/.588" Duration 284°/296° RPM Range 2300-6500
$70895
Ships on 10/23/2026
Lowest Price GuaranteeFord 351C, 351M-400M 8 cyl. 1970-1983
- Xtreme Energy 284H Hydraulic Flat Tappet Camshaft Complete Kit
Lift .584"/.588"
Duration 284°/296°
RPM Range 2300-6500
Hydraulic-Street/Strip with 2800+ stall, 9.5:1 compression, headers and gears rough idle
Ford, 351, 351 Cleveland, 400, 351 Modified, 400 Modified, Ford F100, Mach 1, Mustang
Street/strip with 2800+ stall, 9.5:1 compression, headers and gears, rough idle.
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Part TypeCamshaft Kit
BrandCOMP CAMS
Package Height10.4
Package Width14.8
Package Length25.5
Weight25.8 PG
Part CategoryPerformance Parts
Exh. Duration @ .050 In. (Deg)246
Cam StyleHydraulic flat tappet
Grind NumberXE284H
Exh. Duration Advertised (Deg)296
Locks IncludedYes
Engine Make/SizeFord 351M-400
Retainers IncludedYes
Intake Valve Lift With Factory Rocker Arm Ratio (I0.584
Int. Duration @ .050 In. (Deg)240
Assembly Lubricant IncludedYes
Basic Operating Rpm Range2,300-6,500
Pushrods IncludedNo
Gaskets IncludedNo
Rocker Arms IncludedNo
Intake Valve Lift0.584 in (14.834 mm)
Computer-Controlled CompatibleNo
Int. Duration Advertised (Deg)284
Lobe Separation (Deg)110
Rpm Range2300-6500
Lifter StyleHydraulic flat tappet
Advertised Duration284 int./296 exh.
Exhaust Valve Lift With Factory Rocker Arm Ratio (0.588
Valve Springs IncludedYes
UsageStreet/Performance
Valve Lift With Factory Rocker Arm Ratio0.584 int./0.588 exh.
QuantitySold as a kit
Valve Stem Seals IncludedYes
Exhaust Valve Lift0.588 in (14.935 mm)
Advertised Intake Duration284
Outside Diameter Of Outer Spring1.509 in (38.3 mm)
Intake Duration At 050 Inch Lift240
Exhaust Duration At 050 Inch Lift246
Timing Chain StyleDouble roller
Timing Chain And Gears IncludedYes
Advertised Exhaust Duration296
Lifter TypeHydraulic Flat Tappet
Duration At 050 Inch Lift240 int./246 exh.
Valve Springs RequiredNo
Lifters IncludedYes
Vendor Part NumberK32-250-4
Package Qty1
Package TypeEA
