Product Discontinued
COMP CAMSPART NUMBER: 249-K32-651-8

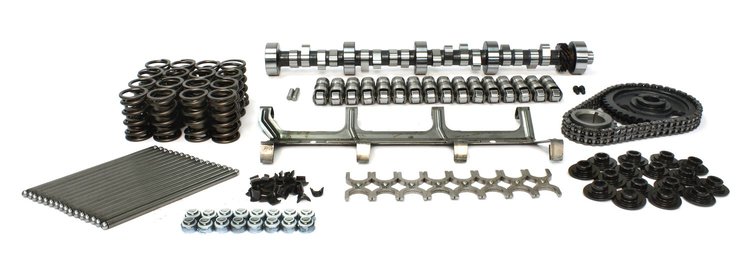

Magnum Hydraulic Roller Camshaft Complete Kit Ford 351C, 351M-400M 1970-82 Retro Fit Lift: .612"/.612"
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.
Ford 351C, 351M-400M 1970-82 Retro Fit
- Magnum Hydraulic Roller Camshaft Complete Kit
- Lift: .612"/.612"
- Duration: 304°/304°
- Lobe Separation Angle: 110°
- RPM Range: 3000-6500
- Cams Are Very Aggressive
- Designed For Performance Oriented Vehicles
- Deliver More Power Than Standard Camshafts
- 1 Year Limited Warranty
Ford, 351, 351 Cleveland, 400, 351 Modified, 400 Modified, Ford F100, Mach 1, Mustang
Street/strip only. 4 speed or 3000+ stall and 4.10 or lower gear. Higher compression, aftermarket intake and headers.
Ford 351C, 351M-400M 1970-82 Retro Fit
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Part TypeCamshaft Kit
BrandCOMP CAMS
Package Height5.3
Package Width10.4
Package Length25.4
Weight28.69 PG
Part CategoryPerformance Parts
Exh. Duration @ .050 In. (Deg)244
Cam StyleHydraulic roller tappet
Grind Number304HR
Exh. Duration Advertised (Deg)304
Locks IncludedYes
Engine Make/SizeFord 351C
Retainers IncludedYes
Intake Valve Lift With Factory Rocker Arm Ratio (I0.612
Int. Duration @ .050 In. (Deg)244
Assembly Lubricant IncludedNo
Basic Operating Rpm Range3,000-6,500
Pushrods IncludedNo
Gaskets IncludedNo
Rocker Arms IncludedNo
Intake Valve Lift0.612 in (15.545 mm)
Computer-Controlled CompatibleNo
Int. Duration Advertised (Deg)304
Lobe Separation (Deg)110
Rpm Range3000-6500
Lifter StyleHydraulic roller
Advertised Duration304 int./304 exh.
Exhaust Valve Lift With Factory Rocker Arm Ratio (0.612
Valve Springs IncludedYes
UsageStreet/Strip
Valve Lift With Factory Rocker Arm Ratio0.612 int./0.612 exh.
QuantitySold as a kit
Valve Stem Seals IncludedYes
Exhaust Valve Lift0.612 in (15.545 mm)
Advertised Intake Duration304
Outside Diameter Of Outer Spring1.509 in (38.3 mm)
Intake Duration At 050 Inch Lift244
Exhaust Duration At 050 Inch Lift244
Timing Chain StyleDouble roller
Timing Chain And Gears IncludedYes
Advertised Exhaust Duration304
Lifter TypeHydraulic Roller
Part FitmentSemi Universal
Duration At 050 Inch Lift244 int./244 exh.
Valve Springs RequiredNo
Lifters IncludedYes
Vendor Part NumberK32-651-8
Package Qty1
Package TypeEA
