Vehicle Info NeededCOMP CAMSPART NUMBER: 249-K34-232-4

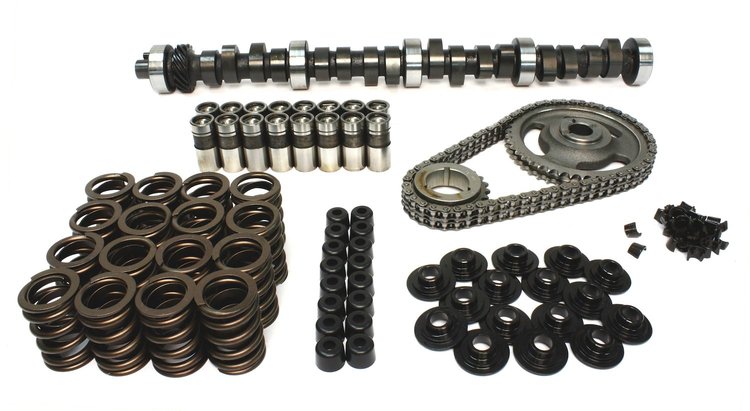

Comp Cams Xtreme Marine Hydraulic Flat Tappet Camshafts
$68095
Ships on 10/19/2026
Lowest Price GuaranteeFord 429, 460ci 1968-94
- Xtreme Marine Hydraulic Flat Tappet Camshaft
Ford 429, 460ci 1968-94
Lift: .514"/.524"
Duration: 262°/268°
Lobe Separation Angle: 112°
RPM Range: 1000-5200
Strong low end and mid range power, has smooth idle.
Ford; 429; 460; BBF; Big Block Ford; 385; Cobra Jet; 429 Cobra Jet; Interceptor; Lima; F100; F150; F250; Super Duty; E150; E250
Strong low end and mid-range power, smooth idle.
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Part TypeCamshaft Kit
BrandCOMP CAMS
Package Height5.15
Package Width10.6
Package Length25.5
Weight26.84 PG
Part CategoryPerformance Parts
Exh. Duration @ .050 In. (Deg)224
Cam StyleHydraulic flat tappet
Grind NumberXM262H
Exh. Duration Advertised (Deg)268
Locks IncludedYes
Engine Make/SizeFord 429-460
Retainers IncludedYes
Intake Valve Lift With Factory Rocker Arm Ratio (I0.514
Int. Duration @ .050 In. (Deg)218
Assembly Lubricant IncludedYes
Basic Operating Rpm Range1,000-5,200
Pushrods IncludedNo
Gaskets IncludedNo
Rocker Arms IncludedNo
Intake Valve Lift0.505 in (12.827 mm)
Computer-Controlled CompatibleNo
Int. Duration Advertised (Deg)262
Lobe Separation (Deg)112
Rpm Range1000-5200
Lifter StyleHydraulic flat tappet
Advertised Duration262 int./268 exh.
Exhaust Valve Lift With Factory Rocker Arm Ratio (0.524
Valve Springs IncludedYes
UsageMarine
Valve Lift With Factory Rocker Arm Ratio0.514 int./0.524 exh.
QuantitySold as a kit
Valve Stem Seals IncludedYes
Exhaust Valve Lift0.515 in (13.081 mm)
Advertised Intake Duration262
Outside Diameter Of Outer Spring1.475 in (37.5 mm)
Intake Duration At 050 Inch Lift218
Exhaust Duration At 050 Inch Lift224
Timing Chain StyleDouble roller
Timing Chain And Gears IncludedYes
Advertised Exhaust Duration268
Lifter TypeHydraulic Flat Tappet
Part FitmentSemi Universal
Duration At 050 Inch Lift218 int./224 exh.
Valve Springs RequiredNo
Lifters IncludedYes
Vendor Part NumberK34-232-4
Package Qty1
Package TypeEA
