Vehicle Info NeededCOMP CAMSPART NUMBER: 249-K34-236-4

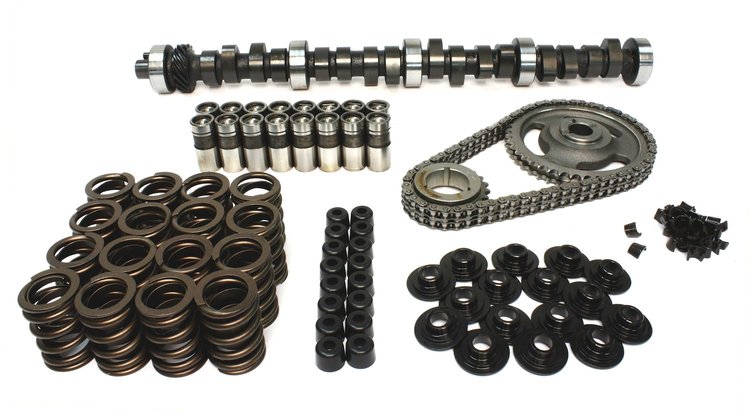

Comp Cams Xtreme Marine Hydraulic Flat Tappet Camshafts
$75595
Ships on 10/20/2026
Lowest Price GuaranteeFord 429, 460ci 1968-94
- Xtreme Marine Hyd. Flat Tappet Cam Complete Kit
- Xtreme Marine Camshaft
- 1 Year Limited Warranty
Ford; 429; 460; BBF; Big Block Ford; 385; Cobra Jet; 429 Cobra Jet; Interceptor; Lima; F100; F150; F250; Super Duty; E150; E250
Strong mid-range with good throttle response, great for small blower, noticeable idle.
Ford 429, 460ci 1968-94
Lift: .554"/.557"
Duration: 270°/286°
Lobe Separation Angle: 112°
RPM Range: 1600-5800
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Part TypeCamshaft Kit
BrandCOMP CAMS
Package Height5.0
Package Width10.3
Package Length25.5
Weight28.15 PG
Part CategoryPerformance Parts
Exh. Duration @ .050 In. (Deg)236
Cam StyleHydraulic flat tappet
Grind NumberXM270H
Exh. Duration Advertised (Deg)286
Locks IncludedYes
Engine Make/SizeFord 429-460
Retainers IncludedYes
Intake Valve Lift With Factory Rocker Arm Ratio (I0.554
Int. Duration @ .050 In. (Deg)226
Assembly Lubricant IncludedYes
Basic Operating Rpm Range1,600-5,800
Pushrods IncludedNo
Gaskets IncludedNo
Rocker Arms IncludedNo
Intake Valve Lift0.544 in (13.818 mm)
Computer-Controlled CompatibleNo
Int. Duration Advertised (Deg)270
Lobe Separation (Deg)112
Rpm Range1600-5800
Lifter StyleHydraulic flat tappet
Advertised Duration270 int./286 exh.
Exhaust Valve Lift With Factory Rocker Arm Ratio (0.557
Valve Springs IncludedYes
UsageMarine
Valve Lift With Factory Rocker Arm Ratio0.554 int./0.557 exh.
QuantitySold as a kit
Valve Stem Seals IncludedYes
Exhaust Valve Lift0.547 in (13.894 mm)
Advertised Intake Duration270
Outside Diameter Of Outer Spring1.509 in (38.3 mm)
Intake Duration At 050 Inch Lift226
Exhaust Duration At 050 Inch Lift236
Timing Chain StyleDouble roller
Timing Chain And Gears IncludedYes
Advertised Exhaust Duration286
Lifter TypeHydraulic Flat Tappet
Duration At 050 Inch Lift226 int./236 exh.
Valve Springs RequiredNo
Lifters IncludedYes
Vendor Part NumberK34-236-4
Package Qty1
Package TypeEA
