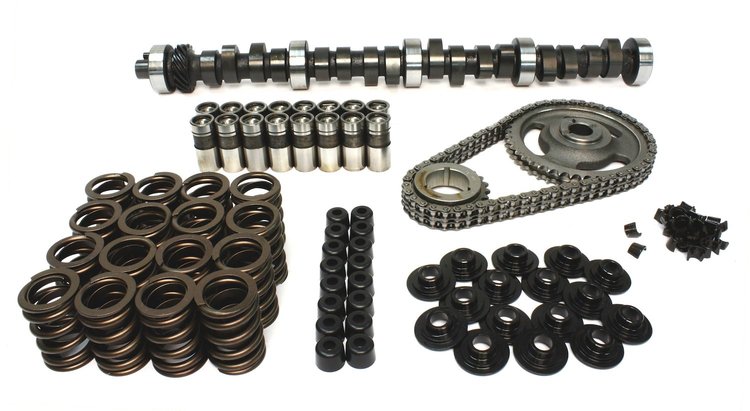

Xtreme Energy 262H Hydraulic Flat Tappet Camshaft Complete Kit Lift .513"/.520" Duration 262°/270° RPM Range 1300-5600

Vehicle Info Needed

COMP CAMSPART NUMBER: 249-K34-238-4

Xtreme Energy 262H Hydraulic Flat Tappet Camshaft Complete Kit Lift .513"/.520" Duration 262°/270° RPM Range 1300-5600

Name: Xtreme Energy 262H Hydraulic Flat Tappet Camshaft Complete Kit Lift .513"/.520" Duration 262°/270° RPM Range 1300-5600
Brand: COMP CAMS
SKU: 249-K34-238-4
Price: 650.95 USD
Availability: InStock

^$650⁹⁵

4 left in stock

Ships Today

Lowest Price Guarantee

Ford 429, 460 c.i. 8 CYL. 1968-1995

Lift

Duration

RPM Range

Produces Better Throttle Response
Produces Top Engine Horsepower
Delivers Increased Engine Vacuum
1 Year Limited Warranty
Ford; 429; 460; BBF; Big Block Ford; 385; Cobra Jet; 429 Cobra Jet; Interceptor; Lima; F100; F150; F250; Super Duty; E150; E250

Strong torque, excellent response heavy towing in 460 with 4:10 gears.

Emissions Note:

This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART

Part TypeCamshaft Kit

BrandCOMP CAMS

Package Height5.3

Package Width10.4

Package Length25.5

Weight26.5 PG

Part CategoryPerformance Parts

Exh. Duration @ .050 In. (Deg)224

Cam StyleHydraulic flat tappet

Grind NumberXE262H

Exh. Duration Advertised (Deg)270

Locks IncludedYes

Engine Make/SizeFord 429-460

Retainers IncludedYes

Intake Valve Lift With Factory Rocker Arm Ratio (I0.513

Int. Duration @ .050 In. (Deg)218

Assembly Lubricant IncludedYes

Basic Operating Rpm Range1,300-5,600

Pushrods IncludedNo

Gaskets IncludedNo

Rocker Arms IncludedNo

Intake Valve Lift0.513 in (13.03 mm)

Computer-Controlled CompatibleNo

Int. Duration Advertised (Deg)262

Lobe Separation (Deg)110

Rpm Range1300-5600

Lifter StyleHydraulic flat tappet

Advertised Duration262 int./270 exh.

Exhaust Valve Lift With Factory Rocker Arm Ratio (0.52

Valve Springs IncludedYes

UsageStreet/Performance

Valve Lift With Factory Rocker Arm Ratio0.513 int./0.520 exh.

QuantitySold as a kit

Valve Stem Seals IncludedYes

Exhaust Valve Lift0.52 in (13.208 mm)

Advertised Intake Duration262

Outside Diameter Of Outer Spring1.475 in (37.5 mm)

Intake Duration At 050 Inch Lift218

Exhaust Duration At 050 Inch Lift224

Timing Chain StyleDouble roller

Timing Chain And Gears IncludedYes

Advertised Exhaust Duration270

Lifter TypeHydraulic Flat Tappet

Part FitmentSemi Universal

Duration At 050 Inch Lift218 int./224 exh.

Valve Springs RequiredNo

Lifters IncludedYes

Vendor Part NumberK34-238-4

Package Qty1

Package TypeEA
