Vehicle Info NeededCOMP CAMSPART NUMBER: 249-K34-337-4

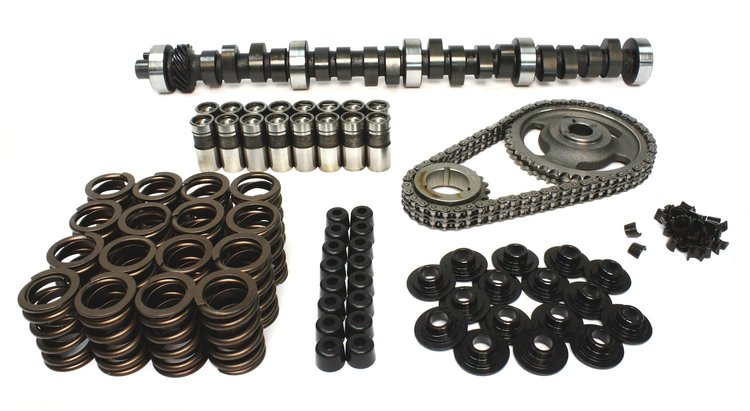

Magnum 305H Hydraulic Flat Tappet Camshaft Complete Kit Lift .585"/.585" Duration 305°/305° RPM Range 3000-6800
$79595
Ships on 10/23/2026
Lowest Price GuaranteeFord 429, 460 c.i. 8 CYL. 1968-1995
- Magnum 305H Hydraulic Flat Tappet Camshaft Complete Kit
Lift .585"/.585"
Duration 305°/305°
RPM Range 3000-6800
Hydraulic-Bracket Racing or limited street use. Strong top end power. 10.5:1 compression, 3500+ stall. Radical racy idle.
Ford; 429; 460; BBF; Big Block Ford; 385; Cobra Jet; 429 Cobra Jet; Interceptor; Lima; F100; F150; F250; Super Duty; E150; E250
Jet boat with B impeller. Flat bottom or hydro bracket racer. Likes tunnel ram. Bracket racing or limited street use. Strong top end power. 10.5:1 compression, 3500+ stall. Radical racy idle.
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Part TypeCamshaft Kit
BrandCOMP CAMS
Package Height5.5
Package Width10.4
Package Length25.5
Weight27.85 PG
Part CategoryPerformance Parts
Exh. Duration @ .050 In. (Deg)253
Cam StyleHydraulic flat tappet
Grind NumberFF 305H-10
Exh. Duration Advertised (Deg)305
Locks IncludedYes
Engine Make/SizeFord 429-460
Retainers IncludedYes
Intake Valve Lift With Factory Rocker Arm Ratio (I0.585
Int. Duration @ .050 In. (Deg)253
Assembly Lubricant IncludedYes
Basic Operating Rpm Range3,000-6,800
Pushrods IncludedNo
Gaskets IncludedNo
Rocker Arms IncludedNo
Intake Valve Lift0.585 in (14.859 mm)
Computer-Controlled CompatibleNo
Int. Duration Advertised (Deg)305
Lobe Separation (Deg)110
Rpm Range3000-6800
Lifter StyleHydraulic flat tappet
Advertised Duration305 int./305 exh.
Exhaust Valve Lift With Factory Rocker Arm Ratio (0.585
Valve Springs IncludedYes
UsageStreet/Strip
Valve Lift With Factory Rocker Arm Ratio0.585 int./0.585 exh.
QuantitySold as a kit
Valve Stem Seals IncludedYes
Exhaust Valve Lift0.585 in (14.859 mm)
Advertised Intake Duration305
Outside Diameter Of Outer Spring1.509 in (38.3 mm)
Intake Duration At 050 Inch Lift253
Exhaust Duration At 050 Inch Lift253
Timing Chain StyleDouble non-roller
Timing Chain And Gears IncludedYes
Advertised Exhaust Duration305
Lifter TypeHydraulic Flat Tappet
Part FitmentSemi Universal
Duration At 050 Inch Lift253 int./253 exh.
Valve Springs RequiredNo
Lifters IncludedYes
Vendor Part NumberK34-337-4
Package Qty1
Package TypeEA
