Comp Cams Blower/Turbo Hydraulic Flat Tappet Camshafts

Vehicle Info Needed

COMP CAMSPART NUMBER: 249-K35-306-8

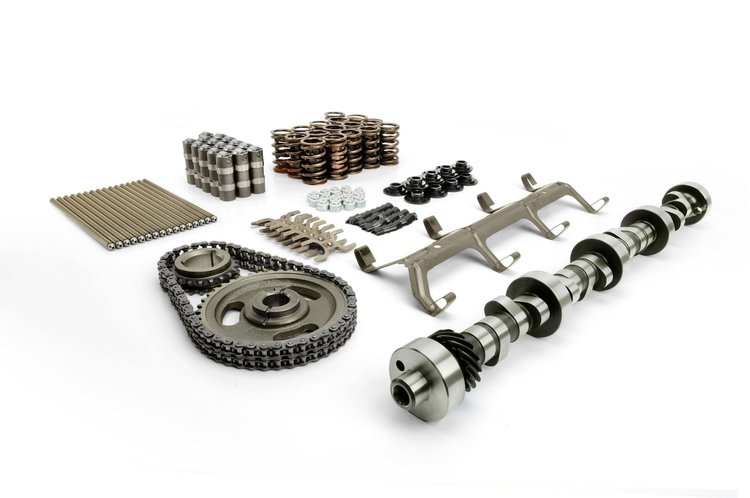

Comp Cams Blower/Turbo Hydraulic Flat Tappet Camshafts

Name: Comp Cams Blower/Turbo Hydraulic Flat Tappet Camshafts
Brand: COMP CAMS
SKU: 249-K35-306-8
Price: 1276.95 USD
Availability: InStock

^$1,276⁹⁵

Ships on 10/19/2026

Lowest Price Guarantee

Ford 5.0L 1985-2002

.533"/.544"

284°/290°

114°

2000-6000

Hydraulic Roller Lessens Internal Wear
Supercharged Combos w/Heads/Intake/Headers
3.55-3.73 Gear
Mild Stall
1 Year Limited Warranty
Ford; SBF; Mustang; Windsor; Fairlane; Meteor; Mercury; GT; 22; 260; Sunbeam; Tiger; 289; 302; 351; 289; HiPo; K-Code; GT-350; Shelby; Boss; 5.0; 308; Windsor; Torino; Cougar; F-150; Squire; Thunderbird; LTD; Galaxie; Grand Marquis

Supercharged combinations with heads, intake, headers. 3.55-3.73 gear, mild stall.

Emissions Note:

This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART

Part TypeCamshaft Kit

BrandCOMP CAMS

Package Height5.0

Package Width10.5

Package Length26.0

Weight30.0 PG

Part CategoryPerformance Parts

Exh. Duration @ .050 In. (Deg)230

Cam StyleHydraulic roller tappet

Grind NumberFW 284H-R14

Exh. Duration Advertised (Deg)290

Locks IncludedYes

Engine Make/SizeFord 5.0L/302

Retainers IncludedYes

Intake Valve Lift With Factory Rocker Arm Ratio (I0.533

Int. Duration @ .050 In. (Deg)224

Assembly Lubricant IncludedNo

Basic Operating Rpm Range2,000-6,000

Pushrods IncludedNo

Gaskets IncludedNo

Rocker Arms IncludedNo

Intake Valve Lift0.533 in (13.538 mm)

Computer-Controlled CompatibleNo

Int. Duration Advertised (Deg)284

Lobe Separation (Deg)114

Rpm Range2000-6000

Lifter StyleHydraulic roller

Advertised Duration284 int./290 exh.

Exhaust Valve Lift With Factory Rocker Arm Ratio (0.544

Valve Springs IncludedYes

UsageStreet/Performance

Valve Lift With Factory Rocker Arm Ratio0.533 int./0.544 exh.

QuantitySold as a kit

Valve Stem Seals IncludedYes

Exhaust Valve Lift0.544 in (13.818 mm)

Advertised Intake Duration284

Outside Diameter Of Outer Spring1.43 in (36.3 mm)

Intake Duration At 050 Inch Lift224

Exhaust Duration At 050 Inch Lift230

Timing Chain StyleDouble non-roller

Timing Chain And Gears IncludedYes

Advertised Exhaust Duration290

Lifter TypeHydraulic Roller

Part FitmentSemi Universal

Duration At 050 Inch Lift224 int./230 exh.

Valve Springs RequiredNo

Lifters IncludedYes

Vendor Part NumberK35-306-8

Package Qty1

Package TypeEA
