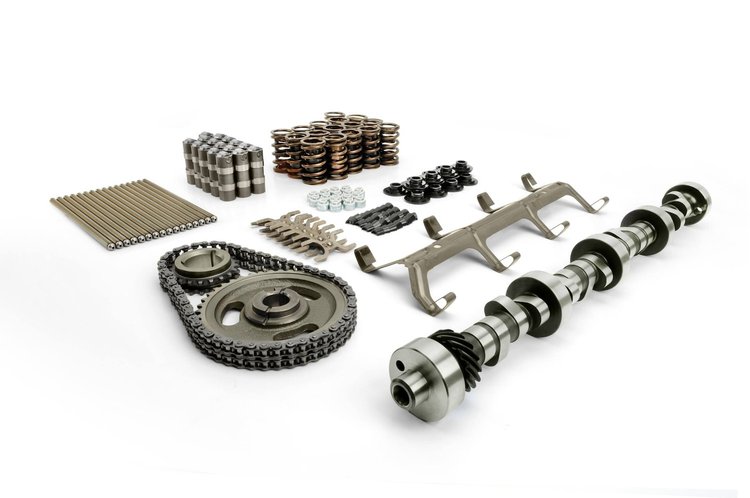

Magnum Hydraulic Roller Camshaft Complete Kit Ford 5.0L 1985-95 Factory Roller Lift: .560"/.598"
InfoVehicle Info Needed
COMP CAMSPART NUMBER: 249-K35-314-8

Magnum Hydraulic Roller Camshaft Complete Kit Ford 5.0L 1985-95 Factory Roller Lift: .560"/.598"

$1,21495
ShippingShips on 09/16/2026
Lowest PriceLowest Price Guarantee

Ford 5.0L 1985-95 Factory Roller
    Magnum Hydraulic Roller Camshaft Complete Kit
    Ford 5.0L 1985-95 Factory Roller
  • Lift: .560"/.598"
  • Duration: 280°/286°
  • Lobe Separation Angle: 112°
  • RPM Range: 2200-6200

  • Cams Are Very Aggressive
  • Designed For Performance Oriented Vehicles
  • Deliver More Power Than Standard Camshafts
  • 1 Year Limited Warranty

    Ford; SBF; Mustang; Windsor; Fairlane; Meteor; Mercury; GT; 22; 260; Sunbeam; Tiger; 289; 302; 351; 289; HiPo; K-Code; GT-350; Shelby; Boss; 5.0; 308; Windsor; Torino; Cougar; F-150; Squire; Thunderbird; LTD; Galaxie; Grand Marquis


    Needs injectors, larger mass air and throttle body, intake, heads, headers, gears and 2500+ stall or 5 speed.

Emissions Note:

This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART

Part TypeCamshaft Kit
BrandCOMP CAMS
Package Height5.1
Package Width10.4
Package Length25.2
Weight26.1 PG
Part CategoryPerformance Parts
Exh. Duration @ .050 In. (Deg)230
Cam StyleHydraulic roller tappet
Grind Number280HR
Exh. Duration Advertised (Deg)286
Locks IncludedYes
Engine Make/SizeFord 5.0L/302
Retainers IncludedYes
Intake Valve Lift With Factory Rocker Arm Ratio (I0.56
Int. Duration @ .050 In. (Deg)224
Assembly Lubricant IncludedNo
Basic Operating Rpm Range2,200-6,200
Pushrods IncludedNo
Gaskets IncludedNo
Rocker Arms IncludedNo
Intake Valve Lift0.56 in (14.224 mm)
Computer-Controlled CompatibleYes
Int. Duration Advertised (Deg)280
Lobe Separation (Deg)112
Rpm Range2200-6200
Lifter StyleHydraulic roller
Advertised Duration280 int./286 exh.
Exhaust Valve Lift With Factory Rocker Arm Ratio (0.598
Valve Springs IncludedYes
UsageStreet/Strip
Valve Lift With Factory Rocker Arm Ratio0.560 int./0.598 exh.
QuantitySold as a kit
Valve Stem Seals IncludedYes
Exhaust Valve Lift0.598 in (15.189 mm)
Advertised Intake Duration280
Outside Diameter Of Outer Spring1.43 in (36.3 mm)
Intake Duration At 050 Inch Lift224
Exhaust Duration At 050 Inch Lift230
Timing Chain StyleDouble roller
Timing Chain And Gears IncludedYes
Advertised Exhaust Duration286
Lifter TypeHydraulic Flat Tappet
Part FitmentSemi Universal
Duration At 050 Inch Lift224 int./230 exh.
Valve Springs RequiredNo
Lifters IncludedYes
Vendor Part NumberK35-314-8
Package Qty1
Package TypeEA
