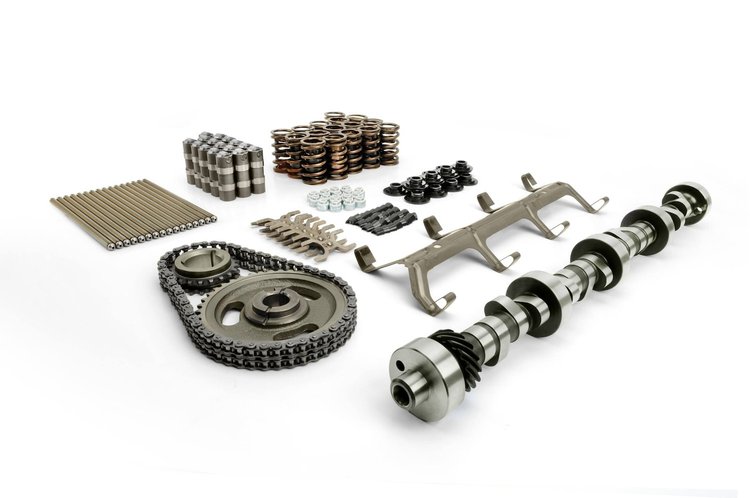

Magnum Hydraulic Roller Camshaft Complete Kit Ford 5.0L 1985-95 Factory Roller Carburetor Only Lift: .533"/.533"
InfoVehicle Info Needed
COMP CAMSPART NUMBER: 249-K35-410-8

Magnum Hydraulic Roller Camshaft Complete Kit Ford 5.0L 1985-95 Factory Roller Carburetor Only Lift: .533"/.533"

$1,33995
ShippingShips on 10/23/2026
Lowest PriceLowest Price Guarantee

Ford 5.0L 1985-95 Factory Roller
  • Carburetor Only
    • Magnum Hydraulic Roller Camshaft Complete Kit
      Ford 5.0L 1985-95 Factory Roller
      Carburetor Only
    • Lift: .533"/.533"
    • Duration: 260°/260°
    • Lobe Separation Angle: 110°
    • RPM Range: 1200-4500

    • Cams Are Very Aggressive
    • Designed For Performance Oriented Vehicles
    • Deliver More Power Than Standard Camshafts
    • 1 Year Limited Warranty

      Ford; SBF; Mustang; Windsor; Fairlane; Meteor; Mercury; GT; 22; 260; Sunbeam; Tiger; 289; 302; 351; 289; HiPo; K-Code; GT-350; Shelby; Boss; 5.0; 308; Windsor; Torino; Cougar; F-150; Squire; Thunderbird; LTD; Galaxie; Grand Marquis


      Best with stock or slightly modified engine for economy or towing. Stock gears and torque converter. Smooth idle.

    Emissions Note:

    This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

    CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART

    Part TypeCamshaft Kit
    BrandCOMP CAMS
    Package Height5.0
    Package Width10.5
    Package Length26.0
    Weight28.0 PG
    Part CategoryPerformance Parts
    Exh. Duration @ .050 In. (Deg)206
    Cam StyleHydraulic roller tappet
    Grind Number260HR
    Exh. Duration Advertised (Deg)260
    Locks IncludedYes
    Engine Make/SizeFord 5.0L/302
    Retainers IncludedYes
    Intake Valve Lift With Factory Rocker Arm Ratio (I0.533
    Int. Duration @ .050 In. (Deg)206
    Assembly Lubricant IncludedNo
    Basic Operating Rpm Range1,200-4,500
    Pushrods IncludedNo
    Gaskets IncludedNo
    Rocker Arms IncludedNo
    Intake Valve Lift0.533 in (13.538 mm)
    Computer-Controlled CompatibleNo
    Int. Duration Advertised (Deg)260
    Lobe Separation (Deg)110
    Rpm Range1200-4500
    Lifter StyleHydraulic roller
    Advertised Duration260 int./260 exh.
    Exhaust Valve Lift With Factory Rocker Arm Ratio (0.533
    Valve Springs IncludedYes
    UsageStreet/Strip
    Valve Lift With Factory Rocker Arm Ratio0.533 int./0.533 exh.
    QuantitySold as a kit
    Valve Stem Seals IncludedYes
    Exhaust Valve Lift0.533 in (13.538 mm)
    Advertised Intake Duration260
    Outside Diameter Of Outer Spring1.43 in (36.3 mm)
    Intake Duration At 050 Inch Lift206
    Exhaust Duration At 050 Inch Lift206
    Timing Chain StyleDouble roller
    Timing Chain And Gears IncludedYes
    Advertised Exhaust Duration260
    Lifter TypeHydraulic Roller
    Duration At 050 Inch Lift206 int./206 exh.
    Valve Springs RequiredNo
    Lifters IncludedYes
    Vendor Part NumberK35-410-8
    Package Qty1
    Package TypeEA
