Vehicle Info NeededCOMP CAMSPART NUMBER: 249-K35-414-3

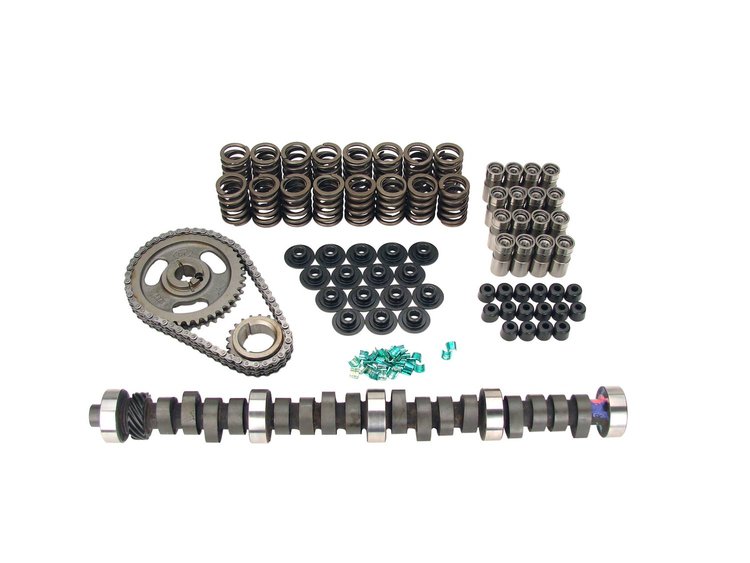

Magnum 270H Hydraulic Flat Tappet Camshaft Complete Kit Lift .500"/.500" Duration 270°/270° RPM Range 1800-5800
$58395
Ships on Oct 27, 2026
Lowest Price GuaranteeCurrently Unavailable
This product is currently not available. Please call customer service for assistance at 1-800-345-4545.
Ford 351W 8-cyl. 1969-1995
- Magnum 270H Hydraulic Flat Tappet Camshaft Complete Kit
Lift .500"/.500"
Duration 270°/270°
RPM Range 1800-5800
*Note: Firing Order 1-3-7-2-6-5-4-8
Good for daily driven performance cars. Most cam usable with stock converter. Lower gears. Mild rough idle.
| Operating Range: | 1800-5800 RPM |
| Duration Advertised: | 270° Intake / 270° Exhaust |
| Duration @ .050' Lift: | 224° Intake / 224° Exhaust |
| Valve Lift w/1.6 Rockers: | .500' Intake / .500' Exhaust |
| Lobe Separation Angle: | 110° |
Ford, 351W, Windsor, 351 Windsor, 302, 5.0 HO, Explorer, Mutang, Ford Mustang, 408, 347, Fox Body Mustang, Fox Body, 302 HO, Cougar, F100, F150
Good for daily driven performance cars. Largest cam for stock converter. Lower gears. Mild rough ride.
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Part TypeCamshaft Kit
BrandCOMP CAMS
Package Height5.2
Package Width10.4
Package Length25.4
Weight24.35 PG
Part CategoryPerformance Parts
Exh. Duration @ .050 In. (Deg)224
Cam StyleHydraulic flat tappet
Grind NumberFW 270H-10
Exh. Duration Advertised (Deg)270
Locks IncludedYes
Engine Make/SizeFord 5.0L/302
Retainers IncludedYes
Intake Valve Lift With Factory Rocker Arm Ratio (I0.5
Int. Duration @ .050 In. (Deg)224
Assembly Lubricant IncludedYes
Basic Operating Rpm Range1,800-5,800
Pushrods IncludedNo
Gaskets IncludedNo
Rocker Arms IncludedNo
Intake Valve Lift0.5 in (12.7 mm)
Computer-Controlled CompatibleNo
Int. Duration Advertised (Deg)270
Lobe Separation (Deg)110
Rpm Range1800-5800
Lifter StyleHydraulic flat tappet
Advertised Duration270 int./270 exh.
Exhaust Valve Lift With Factory Rocker Arm Ratio (0.5
Valve Springs IncludedYes
UsageStreet/Strip
Valve Lift With Factory Rocker Arm Ratio0.500 int./0.500 exh.
QuantitySold as a kit
Valve Stem Seals IncludedYes
Exhaust Valve Lift0.5 in (12.7 mm)
Advertised Intake Duration270
Outside Diameter Of Outer Spring1.437 in (36.5 mm)
Intake Duration At 050 Inch Lift224
Exhaust Duration At 050 Inch Lift224
Timing Chain StyleDouble non-roller
Timing Chain And Gears IncludedYes
Advertised Exhaust Duration270
Lifter TypeHydraulic Flat Tappet
Part FitmentSemi Universal
Duration At 050 Inch Lift224 int./224 exh.
Valve Springs RequiredNo
Lifters IncludedYes
Vendor Part NumberK35-414-3
Package Qty1
Package TypeEA
