Vehicle Info NeededCOMP CAMSPART NUMBER: 249-K35-450-8

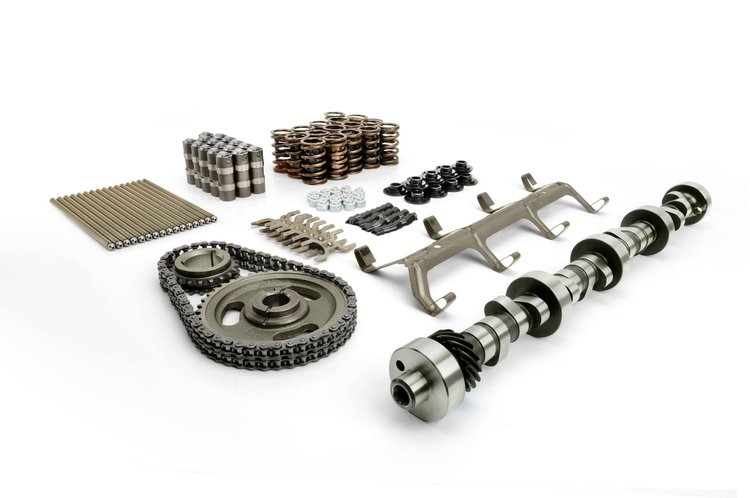

Magnum Hydraulic Roller Camshaft Complete Kit Ford 5.0L 1985-95 Factory Roller Carburetor Only Lift: .598"/.598"
$1,33995
Ships on Oct 27, 2026
Lowest Price GuaranteeCurrently Unavailable
This product is currently not available. Please call customer service for assistance at 1-800-345-4545.
Ford 5.0L 1985-95 Factory RollerCarburetor Only
- Magnum Hydraulic Roller Camshaft Complete Kit
- Lift: .598"/.598"
- Duration: 286°/286°
- Lobe Separation Angle: 110°
- RPM Range: 3000-6500
- Cams Are Very Aggressive
- Designed For Performance Oriented Vehicles
- Deliver More Power Than Standard Camshafts
- 1 Year Limited Warranty
Ford; SBF; Mustang; Windsor; Fairlane; Meteor; Mercury; GT; 22; 260; Sunbeam; Tiger; 289; 302; 351; 289; HiPo; K-Code; GT-350; Shelby; Boss; 5.0; 308; Windsor; Torino; Cougar; F-150; Squire; Thunderbird; LTD; Galaxie; Grand Marquis
Street/strip applications. 5 speed or 2500+ stall, 4.10 or lower gears with higher compression. Aftermarket intake and exhaust.
Ford 5.0L 1985-95 Factory Roller
Carburetor Only
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Part TypeCamshaft Kit
BrandCOMP CAMS
Package Height5.2
Package Width10.4
Package Length25.5
Weight28.05 PG
Part CategoryPerformance Parts
Exh. Duration @ .050 In. (Deg)230
Cam StyleHydraulic roller tappet
Grind NumberFW 286H-R10
Exh. Duration Advertised (Deg)286
Locks IncludedYes
Engine Make/SizeFord 5.0L/302
Retainers IncludedYes
Intake Valve Lift With Factory Rocker Arm Ratio (I0.598
Int. Duration @ .050 In. (Deg)230
Assembly Lubricant IncludedNo
Basic Operating Rpm Range3,000-6,500
Pushrods IncludedNo
Gaskets IncludedNo
Rocker Arms IncludedNo
Intake Valve Lift0.598 in (15.189 mm)
Computer-Controlled CompatibleNo
Int. Duration Advertised (Deg)286
Lobe Separation (Deg)110
Rpm Range3000-6500
Lifter StyleHydraulic roller
Advertised Duration286 int./286 exh.
Exhaust Valve Lift With Factory Rocker Arm Ratio (0.598
Valve Springs IncludedYes
UsageStreet/Strip
Valve Lift With Factory Rocker Arm Ratio0.598 int./0.598 exh.
QuantitySold as a kit
Valve Stem Seals IncludedYes
Exhaust Valve Lift0.598 in (15.189 mm)
Advertised Intake Duration286
Outside Diameter Of Outer Spring1.43 in (36.3 mm)
Intake Duration At 050 Inch Lift230
Exhaust Duration At 050 Inch Lift230
Timing Chain StyleDouble non-roller
Timing Chain And Gears IncludedYes
Advertised Exhaust Duration286
Lifter TypeHydraulic Roller
Duration At 050 Inch Lift230 int./230 exh.
Valve Springs RequiredNo
Lifters IncludedYes
Vendor Part NumberK35-450-8
Package Qty1
Package TypeEA
