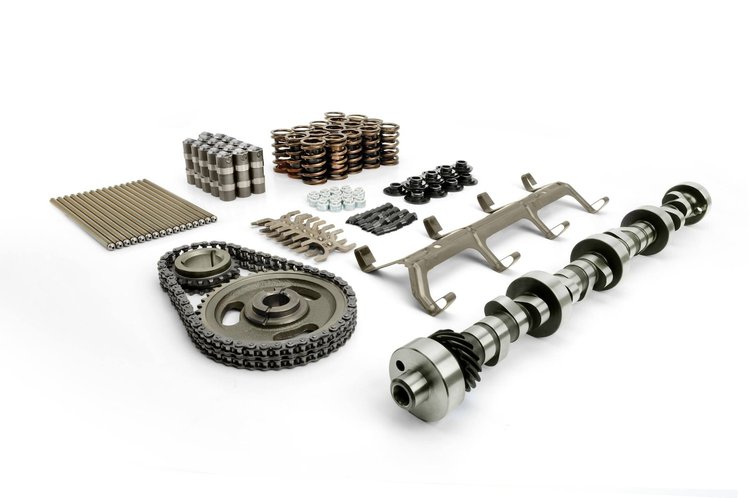

Comp Cams 'Xtreme Energy' Hydraulic Roller Camshafts

Name: Comp Cams 'Xtreme Energy' Hydraulic Roller Camshafts
Brand: COMP CAMS
SKU: 249-K35-510-8
Price: 1276.95 USD
Availability: InStock

^$1,276⁹⁵

Ships on 10/19/2026

Lowest Price Guarantee

Ford 5.0L 8 cyl. 1982-2002

Computer Controlled (EFI) for engines originally equipped with hydraulic roller camshaft.

Xtreme Energy XE270HR Hydraulic Roller Camshaft Complete Kit
Lift: .533"/.544"
Duration: 258°/266°
Lobe Separation Angle: 112°
RPM Range: 1300-5300

Produces Better Throttle Response
Produces Top Engine Horsepower
Delivers Increased Engine Vacuum
1 Year Limited Warranty
Ford; SBF; Mustang; Windsor; Fairlane; Meteor; Mercury; GT; 22; 260; Sunbeam; Tiger; 289; 302; 351; 289; HiPo; K-Code; GT-350; Shelby; Boss; 5.0; 308; Windsor; Torino; Cougar; F-150; Squire; Thunderbird; LTD; Galaxie; Grand Marquis

For stock H.O. or with mild modifications.

Emissions Note:

This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART

Part TypeCamshaft Kit
BrandCOMP CAMS
Package Height5.3
Package Width10.5
Package Length25.5
Weight26.6 PG
Part CategoryPerformance Parts
Exh. Duration @ .050 In. (Deg)216
Cam StyleHydraulic roller tappet
Grind NumberFW XE258HR-12
Exh. Duration Advertised (Deg)266
Locks IncludedYes
Engine Make/SizeFord 5.0L/302
Retainers IncludedYes
Intake Valve Lift With Factory Rocker Arm Ratio (I0.533
Int. Duration @ .050 In. (Deg)208
Assembly Lubricant IncludedNo
Basic Operating Rpm Range1,300-5,300
Pushrods IncludedNo
Gaskets IncludedNo
Rocker Arms IncludedNo
Intake Valve Lift0.533 in (13.538 mm)
Computer-Controlled CompatibleNo
Int. Duration Advertised (Deg)258
Lobe Separation (Deg)112
Rpm Range1500-5500
Lifter StyleHydraulic roller
Advertised Duration258 int./266 exh.
Exhaust Valve Lift With Factory Rocker Arm Ratio (0.544
Valve Springs IncludedYes
UsageStreet/Performance
Valve Lift With Factory Rocker Arm Ratio0.533 int./0.544 exh.
QuantitySold as a kit
Valve Stem Seals IncludedYes
Exhaust Valve Lift0.544 in (13.818 mm)
Advertised Intake Duration258
Outside Diameter Of Outer Spring1.43 in (36.3 mm)
Intake Duration At 050 Inch Lift208
Exhaust Duration At 050 Inch Lift216
Timing Chain StyleDouble non-roller
Timing Chain And Gears IncludedYes
Advertised Exhaust Duration266
Lifter TypeHydraulic Roller
Part FitmentSemi Universal
Duration At 050 Inch Lift208 int./216 exh.
Valve Springs RequiredNo
Lifters IncludedYes
Vendor Part NumberK35-510-8
Package Qty1
Package TypeEA
