Comp Cams 'Xtreme Energy' Hydraulic Roller Camshafts

Name: Comp Cams 'Xtreme Energy' Hydraulic Roller Camshafts
Brand: COMP CAMS
SKU: 249-K35-512-8
Price: 1276.95 USD
Availability: InStock

^$1,276⁹⁵

Ships on 10/19/2026

Lowest Price Guarantee

Ford 5.0L 8 cyl. 1982-2002

Computer Controlled (EFI) for engines originally equipped with hydraulic roller camshaft.

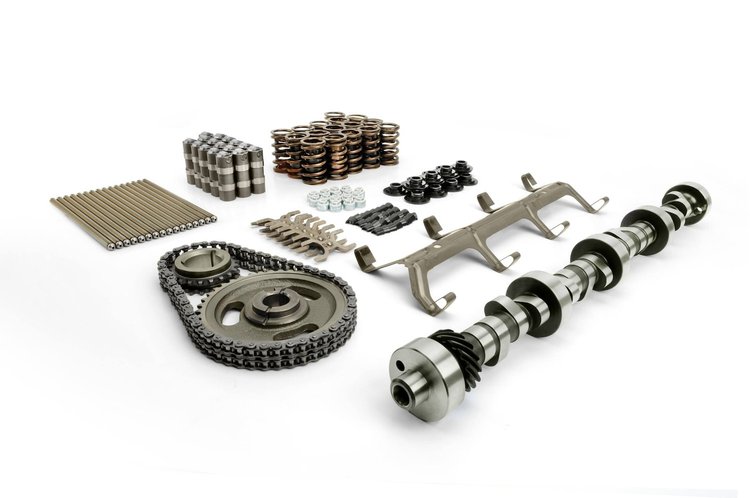

Xtreme Energy XE258HR Hydraulic Roller Camshaft Complete Kit
Lift: .480"/.480"
Duration: 258°/264°
Lobe Separation Angle: 114°
RPM Range: 1200-5200

Produces Better Throttle Response
Produces Top Engine Horsepower
Delivers Increased Engine Vacuum
1 Year Limited Warranty
Ford; SBF; Mustang; Windsor; Fairlane; Meteor; Mercury; GT; 22; 260; Sunbeam; Tiger; 289; 302; 351; 289; HiPo; K-Code; GT-350; Shelby; Boss; 5.0; 308; Windsor; Torino; Cougar; F-150; Squire; Thunderbird; LTD; Galaxie; Grand Marquis

Good power in stock application with few modifications. Best for towing or economy.

Emissions Note:

This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART

Part TypeCamshaft Kit
BrandCOMP CAMS
Package Height5.0
Package Width10.5
Package Length26.0
Weight28.0 PG
Part CategoryPerformance Parts
Exh. Duration @ .050 In. (Deg)212
Cam StyleHydraulic roller tappet
Grind NumberXE258HR
Exh. Duration Advertised (Deg)264
Locks IncludedYes
Engine Make/SizeFord 5.0L/302
Retainers IncludedYes
Intake Valve Lift With Factory Rocker Arm Ratio (I0.48
Int. Duration @ .050 In. (Deg)206
Assembly Lubricant IncludedNo
Basic Operating Rpm Range1,200-5,200
Pushrods IncludedNo
Gaskets IncludedNo
Rocker Arms IncludedNo
Intake Valve Lift0.48 in (12.192 mm)
Computer-Controlled CompatibleYes
Int. Duration Advertised (Deg)258
Lobe Separation (Deg)114
Rpm RangeCustom
Lifter StyleHydraulic roller
Advertised Duration258 int./264 exh.
Exhaust Valve Lift With Factory Rocker Arm Ratio (0.48
Valve Springs IncludedYes
UsageStreet/Performance
Valve Lift With Factory Rocker Arm Ratio0.480 int./0.480 exh.
QuantitySold as a kit
Valve Stem Seals IncludedYes
Exhaust Valve Lift0.48 in (12.192 mm)
Advertised Intake Duration258
Outside Diameter Of Outer Spring1.437 in (36.5 mm)
Intake Duration At 050 Inch Lift206
Exhaust Duration At 050 Inch Lift212
Timing Chain StyleDouble roller
Timing Chain And Gears IncludedYes
Advertised Exhaust Duration264
Lifter TypeHydraulic Roller
Duration At 050 Inch Lift206 int./212 exh.
Valve Springs RequiredNo
Lifters IncludedYes
Vendor Part NumberK35-512-8
Package Qty1
Package TypeEA
