Product Discontinued
COMP CAMSPART NUMBER: 249-K35-770-8

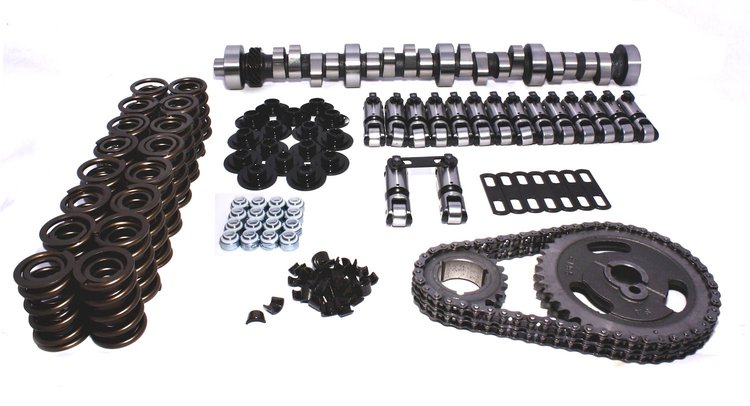

Xtreme Energy Mechanical Roller Camshaft Complete Kit Ford 351W 1969-96 Lift: .602"/.608"
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.
Ford 351W 1969-96
- Xtreme Energy Mechanical Roller Camshaft Complete Kit
- Lift: .602"/.608"
- Duration: 274°/280°
- Lobe Separation Angle: 110°
- RPM Range: 2200-6200
- Produces Better Throttle Response
- Produces Top Engine Horsepower
- Delivers Increased Engine Vacuum
- 1 Year Limited Warranty
Ford, 351W, Windsor, 351 Windsor, 302, 5.0 HO, Explorer, Mutang, Ford Mustang, 408, 347, Fox Body Mustang, Fox Body, 302 HO, Cougar, F100, F150
Great for power touring. Needs 2500+ stall, easy on parts. Very reliable power. Rough idle.
Ford 351W 1969-96
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Part TypeCamshaft Kit
BrandCOMP CAMS
Package Height5.0
Package Width10.5
Package Length26.0
Weight28.0 PG
Part CategoryPerformance Parts
Exh. Duration @ .050 In. (Deg)242
Cam StyleMechanical roller tappet
Grind NumberFW XR274 R-10
Exh. Duration Advertised (Deg)280
Locks IncludedYes
Engine Make/SizeFord 351W
Retainers IncludedYes
Intake Valve Lift With Factory Rocker Arm Ratio (I0.602
Int. Duration @ .050 In. (Deg)236
Assembly Lubricant IncludedNo
Basic Operating Rpm Range2,200-6,200
Pushrods IncludedNo
Gaskets IncludedNo
Intake Valve Lash0.016 in (0.406 mm)
Rocker Arms IncludedNo
Intake Valve Lift0.602 in (15.291 mm)
Computer-Controlled CompatibleNo
Int. Duration Advertised (Deg)274
Lobe Separation (Deg)110
Rpm Range2200-6200
Lifter StyleMechanical roller
Advertised Duration274 int./280 exh.
Exhaust Valve Lift With Factory Rocker Arm Ratio (0.608
Valve Springs IncludedYes
UsageStreet/Performance
Valve Lift With Factory Rocker Arm Ratio0.602 int./0.608 exh.
QuantitySold as a kit
Valve Stem Seals IncludedYes
Exhaust Valve Lash0.018 in (0.457 mm)
Exhaust Valve Lift0.608 in (15.443 mm)
Advertised Intake Duration274
Outside Diameter Of Outer Spring1.46 in (37.1 mm)
Intake Duration At 050 Inch Lift236
Exhaust Duration At 050 Inch Lift242
Timing Chain StyleDouble non-roller
Timing Chain And Gears IncludedYes
Advertised Exhaust Duration280
Lifter TypeMechanical Roller
Duration At 050 Inch Lift236 int./242 exh.
Valve Springs RequiredNo
Lifters IncludedYes
Vendor Part NumberK35-770-8
Package Qty1
Package TypeEA
