Vehicle Info NeededCOMP CAMSPART NUMBER: 249-K42-223-4

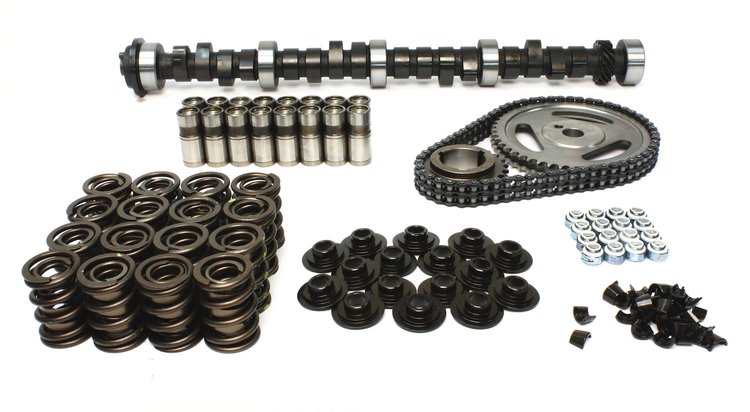

Xtreme Energy 268H Hydraulic Flat Tappet Camshaft Complete Kit Lift .485"/.490" Duration 268°/280° RPM Range 1600-5800
$71295
Ships on 09/15/2026
Lowest Price GuaranteeOldsmobile 260-455 c.i. 8 cyl. 1967-1990
- Xtreme Energy 268H Hydraulic Flat Tappet Camshaft Complete Kit
- Produces Better Throttle Response
- Produces Top Engine Horsepower
- Delivers Increased Engine Vacuum
- 1 Year Limited Warranty
Olds; Oldsmobile; Cutlass; Cutlass Supreme; 98; Calais; Ciera; Custom Cruiser; Starfire; Firenza; 88; Rocket; Rocket 88; Vista Cruiser; Delta 88; 260; 442; 307; 350; 403; 400; 425; 455
Good for street machines, slightly rough idle, 1800+ stall.
Lift .485"/.490"
Duration 268°/280°
RPM Range 1600-5800
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Part TypeCamshaft Kit
BrandCOMP CAMS
Package Height5.4
Package Width10.5
Package Length25.5
Weight24.5 PG
Part CategoryPerformance Parts
Exh. Duration @ .050 In. (Deg)230
Cam StyleHydraulic flat tappet
Grind NumberOL XE268H-10
Exh. Duration Advertised (Deg)280
Locks IncludedYes
Engine Make/SizeOlds 260-455
Retainers IncludedYes
Intake Valve Lift With Factory Rocker Arm Ratio (I0.485
Int. Duration @ .050 In. (Deg)224
Assembly Lubricant IncludedYes
Basic Operating Rpm Range1,600-5,800
Pushrods IncludedNo
Gaskets IncludedNo
Rocker Arms IncludedNo
Intake Valve Lift0.485 in (12.319 mm)
Computer-Controlled CompatibleNo
Int. Duration Advertised (Deg)268
Lobe Separation (Deg)110
Rpm Range1600-5800
Lifter StyleHydraulic flat tappet
Advertised Duration268 int./280 exh.
Exhaust Valve Lift With Factory Rocker Arm Ratio (0.49
Valve Springs IncludedYes
UsageStreet/Performance
Valve Lift With Factory Rocker Arm Ratio0.485 int./0.490 exh.
QuantitySold as a kit
Valve Stem Seals IncludedYes
Exhaust Valve Lift0.49 in (12.446 mm)
Advertised Intake Duration268
Outside Diameter Of Outer Spring1.494 in (37.9 mm)
Intake Duration At 050 Inch Lift224
Exhaust Duration At 050 Inch Lift230
Timing Chain StyleDouble non-roller
Timing Chain And Gears IncludedYes
Advertised Exhaust Duration280
Lifter TypeHydraulic Flat Tappet
Duration At 050 Inch Lift224 int./230 exh.
Valve Springs RequiredNo
Lifters IncludedYes
Vendor Part NumberK42-223-4
Package Qty1
Package TypeEA
