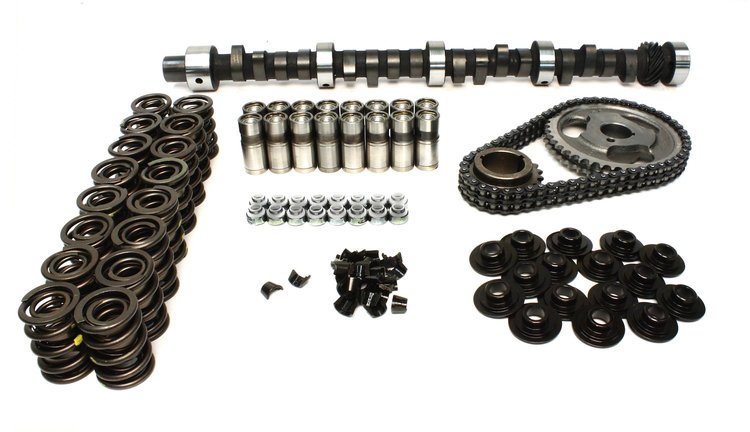

Magnum 292H Hydraulic Flat Tappet Camshaft Complete Kit
Lift .501"/.501"
Duration 292°/292°
RPM Range 2500-6500

Rough idle, performance usage. Increased compression required. Needs 3000 stall and 3.73:1 or 4.30:1 gears.

Operating Range:	2500-6500 RPM
Duration Advertised:	292° Intake / 292° Exhaust
Duration @ .050' Lift:	244° Intake / 244° Exhaust
Valve Lift w/1.5 Rockers:	.501' Intake / .501' Exhaust
Lobe Separation Angle:	110°

Pontiac; Super Duty; SD; SD455; HO; 455 HO; Trans-Am; Catalina; Firebird; Formula; 421; 455; 400; 428; 350; 265; 301; 370; 389; 301; 287; 317; 347; Ram Air; Ram Air IV; Ram Air III; Bonneville; Grand Prix; LeMans; Parisienne; Grand Am; Century; Regal;


Need Info

Emissions Note:

This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
