XFI RPM Hi-Lift Hydraulic Roller Camshaft Kit GM Gen III/LS1/LS2/LS6 1997-PRESENT (Three-Bolt)
InfoVehicle Info Needed
COMP CAMSPART NUMBER: 249-K54-426-11

XFI RPM Hi-Lift Hydraulic Roller Camshaft Kit GM Gen III/LS1/LS2/LS6 1997-PRESENT (Three-Bolt)

$1,31795
ShippingShips on 12/29/2026
Lowest PriceLowest Price Guarantee

XFI RPM Hi-Lift Hydraulic Roller Camshafts
XFI RPM Hi-Lift Hydraulic Roller Camshaft Kit
GM Gen III/LS1/LS2/LS6 1997-PRESENT (Three-Bolt)
  • Lift: .566''/.568''
  • Duration: 275°/277°
  • Lobe Separation Angle:112°
  • RPM Range: 1800-6800

    Great street/strip camshaft for mid-range and high RPM power. Must have a programmer.

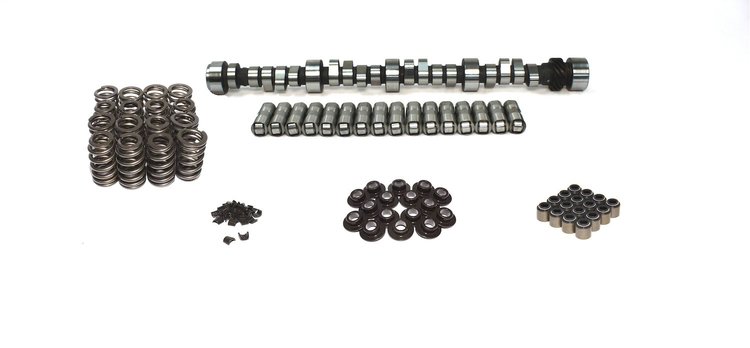

    Kit Includes:

        • Camshaft
        • Lifters
        • Valve Springs
        • Retainers
        • Valve Locks and Seals



    Note:

        Timing set not included



    Operating Range:1800-6800 RPM
    Duration Advertised:275° Intake / 277° Exhaust
    Duration @ .050':222° Intake / 224° Exhaust
    Valve Lift w/1.7 Rockers:.566' Intake / .568' Exhaust
    Lobe Separation Angle:112°

    GM, 4.8, 5.3, 5.7, 6.0, 6.2, 7.0, LS1, LS2, LS3, LS4, LS6, LS7, LSA, LS9, Camaro, Silverado, LS Swap, 383, 350, SBC, Chevelle, Yukon, L92, LM7, 325, GMC, Trailblazer, Corvette, GM LS, GEN III, GEN 3, GEN IV, GEN 4, DOD, AFM, VVT, BTR, Texas Speed


    Great street/strip camshaft for mid-range and high RPM power. Must have programmer.

    Emissions Note:

    This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

    CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART

  • Ever since its introduction, GM's LSX/Gen III engine has quickly become the ''preferred choice'' among many engine builders and performance enthusiasts. Right from the factory, the GM LSX/Gen III engine boasts a surprisingly efficient induction design, reduced weight and impressive power output. As the leading developer of high performance LSX/Gen III valve train technology, Comp Cams has engineered a full line of products proven to release the incredible horsepower and torque hidden inside while never sacrificing ever-critical reliability.

    Show MoreFeatures:
    • Newest and quickest lobe profiles; provide a terrific increase in performance
    • Tuned for use in EFI applications where extra air flow signal through the carburetor is not required (feature wider lobe separation without loss of responsiveness)
    • Work well with aftermarket cylinder heads & feature high lift



    Part TypeCamshaft Kit
    Product LineComp Cams XFI Roller Camshafts For GM LS-Series/Gen III Engines
    BrandCOMP CAMS
    Package Height5.0
    Package Width10.3
    Package Length25.3
    Weight19.9 PG
    Part CategoryPerformance Parts
    Exh. Duration @ .050 In. (Deg)224
    Cam StyleHydraulic roller tappet
    Grind NumberXR275HR
    Exh. Duration Advertised (Deg)271
    Locks IncludedYes
    Engine Make/SizeChevy Small Block (262-400)
    Retainers IncludedYes
    Intake Valve Lift With Factory Rocker Arm Ratio (I0.566
    Int. Duration @ .050 In. (Deg)222
    Assembly Lubricant IncludedYes
    Basic Operating Rpm Range1,800-6,800
    Pushrods IncludedNo
    Gaskets IncludedNo
    Rocker Arms IncludedNo
    Intake Valve Lift0.566 in (14.376 mm)
    Computer-Controlled CompatibleYes
    Int. Duration Advertised (Deg)275
    Lobe Separation (Deg)112
    Rpm Range1800-6800
    Lifter StyleHydraulic roller
    Advertised Duration275 int./277 exh.
    Exhaust Valve Lift With Factory Rocker Arm Ratio (0.568
    Valve Springs IncludedYes
    UsageStreet/Performance
    Valve Lift With Factory Rocker Arm Ratio0.566 int./0.568 exh.
    Camshaft Gear Attachment3-bolt
    QuantitySold as a kit
    Valve Stem Seals IncludedYes
    Exhaust Valve Lift0.568 in (14.427 mm)
    Advertised Intake Duration275
    Outside Diameter Of Outer Spring1.055 in (26.8 mm)
    Intake Duration At 050 Inch Lift222
    Exhaust Duration At 050 Inch Lift224
    Timing Chain And Gears IncludedNo
    Advertised Exhaust Duration277
    Lifter TypeHydraulic Roller
    Part FitmentSemi Universal
    Duration At 050 Inch Lift222 int./224 exh.
    Valve Springs RequiredYes
    Lifters IncludedYes
    Vendor Part NumberK54-426-11
    Package Qty1
    Package TypeEA
