Vehicle Info NeededCOMP CAMSPART NUMBER: 249-K61-244-4

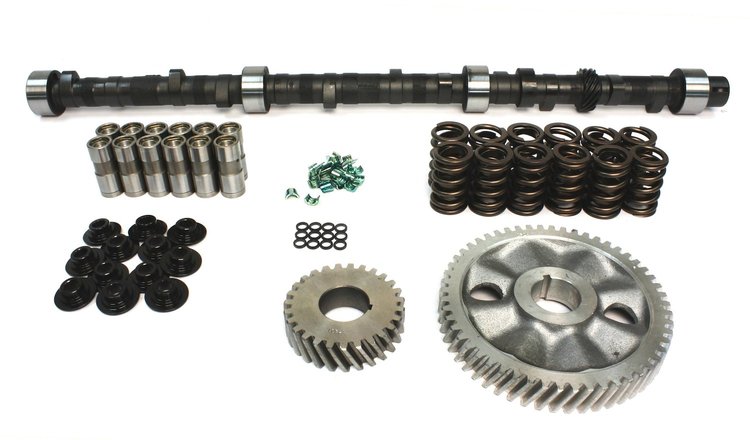

Magnum 268H Hydraulic Flat Tappet Camshaft Complete Kit Lift: .499" /.499" Duration: 268°/268° RPM Range: 1200-5200
$57195
Ships on 10/23/2026
Lowest Price GuaranteeChevy 194-250ci 6-cyl 1963-1984
- Magnum 268H Hydraulic Flat Tappet Camshaft Complete Kit
Lift: .499''/.499"
Duration: 268°/268°
RPM Range: 1200-5200
Good street performance with stock converter, choppy idle.
| Operating Range: | 1200-5200 RPM |
| Duration Advertised: | 268° Intake / 268° Exhaust |
| Duration @ .050' Lift: | 218° Intake / 218° Exhaust |
| Lobe Lift: | .286' Intake / .286' Exhaust |
| Lobe Separation Angle: | 110° |
Good street performance with stock converter or 2000+ stall, choppy idle.
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Part TypeCamshaft Kit
BrandCOMP CAMS
Package Height10.2
Package Width10.4
Package Length35.6
Weight24.7 PG
Part CategoryPerformance Parts
Exh. Duration @ .050 In. (Deg)218
Cam StyleHydraulic flat tappet
Grind Number268H
Exh. Duration Advertised (Deg)268
Locks IncludedYes
Engine Make/SizeChevy 194-250
Retainers IncludedYes
Intake Valve Lift With Factory Rocker Arm Ratio (I0.499
Int. Duration @ .050 In. (Deg)218
Assembly Lubricant IncludedYes
Basic Operating Rpm Range1,200-5,200
Pushrods IncludedNo
Gaskets IncludedNo
Rocker Arms IncludedNo
Intake Valve Lift0.499 in (12.675 mm)
Computer-Controlled CompatibleNo
Int. Duration Advertised (Deg)268
Lobe Separation (Deg)110
Rpm Range1200-5200
Lifter StyleHydraulic flat tappet
Advertised Duration268 int./268 exh.
Exhaust Valve Lift With Factory Rocker Arm Ratio (0.499
Valve Springs IncludedYes
UsageStreet/Strip
Valve Lift With Factory Rocker Arm Ratio0.499 int./0.499 exh.
QuantitySold as a kit
Valve Stem Seals IncludedYes
Exhaust Valve Lift0.499 in (12.675 mm)
Advertised Intake Duration268
Outside Diameter Of Outer Spring1.43 in (36.3 mm)
Intake Duration At 050 Inch Lift218
Exhaust Duration At 050 Inch Lift218
Timing Chain StyleGears
Timing Chain And Gears IncludedYes
Advertised Exhaust Duration268
Lifter TypeHydraulic Flat Tappet
Duration At 050 Inch Lift218 int./218 exh.
Valve Springs RequiredNo
Lifters IncludedYes
Vendor Part NumberK61-244-4
Package Qty1
Package TypeEA
