BV69 258HR10 CAM / KIT
InfoVehicle Info Needed
COMP CAMSPART NUMBER: 249-K69-200-8

BV69 258HR10 CAM / KIT

$1,44595
ShippingShips on 12/30/2026
Lowest PriceLowest Price Guarantee

Items You Need

Valve Spring Compressor [Stud Mount]

JEGS

Valve Spring Compressor [Stud Mount]

Part Number : 555-80518
$919$9.99
You Save$0.80
Precision Cam Degree Wheel Kit [11 in.]

JEGS

Precision Cam Degree Wheel Kit [11 in.]

Part Number : 555-81621
$13499$161.99
You Save$27.00
Universal Camshaft Installation/Removal Tool Includes 4 camshaft adapters

JEGS

Universal Camshaft Installation/Removal Tool Includes 4 camshaft adapters

Part Number : 555-80599
$4779$51.99
You Save$4.20
Engine Assembly Lube [4 oz. Bottle]

JEGS

Engine Assembly Lube [4 oz. Bottle]

Part Number : 555-28000
$599$6.99
You Save$1.00

GM

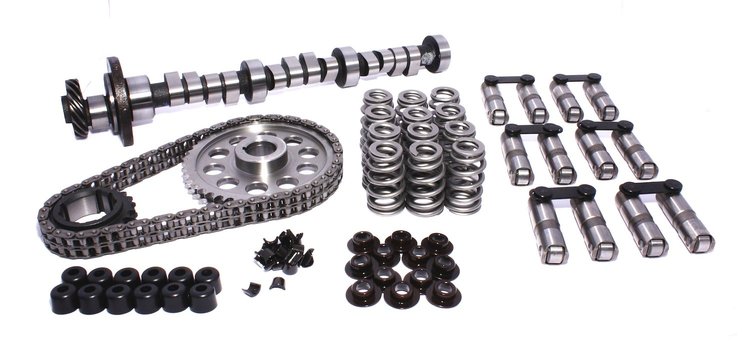

    High Energy Hydraulic Roller Camshaft Complete Kit
    1977 1/2-1987 Buick GN 231 c.i. 6 cyl.
    1988-89 Trans Am
    Lift:.496"/.496"
    Duration:258°/258°
    Lobe Separation Angle:110°
    RPM Range:800-5200

    Complete Kits are indicated by a K in their part number and include Camshaft, Lifters, Timing Chain & Gears, Valve Springs, Retainers, Locks, Assembly Lube, Decals, and Instructions.
  • Good performance upgrade for stock camshaft. Works with stock computer.

    Buick; 198; 225; Buick 225; Buick Odd Fire; Buick V6


    Good performance upgrade for stock camshaft. Works with stock computer.

Emissions Note:

This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART

    Comp Cams High Energy Hydraulic Roller Camshafts are designed work with stock valvetrain components. Each cam provides more power throughout the RPM range with substantial gains above 5000 RPM.



    Features:
  • Work well with mainly stock components (rockers, manifolds, heads, compression, converters, gears)
  • Good blend of efficiency and performance
  • Perfect choice for performance street rebuilds

Part TypeCamshaft Kit
Product LineComp Cams High Energy Hydraulic Roller Camshafts
BrandCOMP CAMS
Package Height4.6
Package Width5.6
Package Length25.1
Weight7.7 PG
Part CategoryPerformance Parts
Exh. Duration @ .050 In. (Deg)206
Cam StyleHydraulic roller tappet
Grind Number258HR
Exh. Duration Advertised (Deg)258
Locks IncludedYes
Engine Make/SizeBuick 231-252
Retainers IncludedYes
Intake Valve Lift With Factory Rocker Arm Ratio (I0.496
Int. Duration @ .050 In. (Deg)206
Assembly Lubricant IncludedNo
Basic Operating Rpm Range800-5,000
Pushrods IncludedNo
Gaskets IncludedNo
Rocker Arms IncludedNo
Intake Valve Lift0.496 in (12.598 mm)
Computer-Controlled CompatibleNo
Int. Duration Advertised (Deg)258
Lobe Separation (Deg)110
Rpm Range800-5200
Lifter StyleHydraulic roller
Advertised Duration258 int./258 exh.
Exhaust Valve Lift With Factory Rocker Arm Ratio (0.496
Valve Springs IncludedYes
UsageStreet/Performance
Valve Lift With Factory Rocker Arm Ratio0.496 int./0.496 exh.
QuantitySold as a kit
Valve Stem Seals IncludedYes
Exhaust Valve Lift0.496 in (12.598 mm)
Advertised Intake Duration258
Outside Diameter Of Outer Spring1.055 in (26.8 mm)
Intake Duration At 050 Inch Lift206
Exhaust Duration At 050 Inch Lift206
Timing Chain StyleDouble roller
Timing Chain And Gears IncludedYes
Advertised Exhaust Duration258
Lifter TypeHydraulic Roller
Duration At 050 Inch Lift206 int./206 exh.
Valve Springs RequiredNo
Lifters IncludedYes
Vendor Part NumberK69-200-8
Package Qty1
Package TypeEA
