Product Discontinued
COMP CAMSPART NUMBER: 249-SK08-464-8

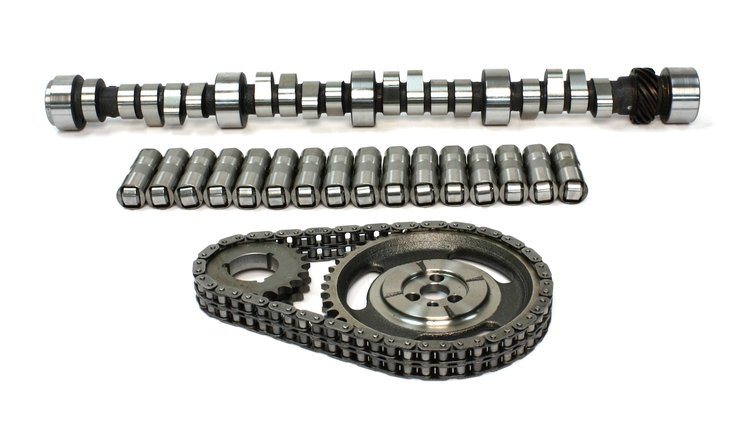

XFI Hydraulic Roller Camshaft Small Kit Small Block Chevy 305/350 1987-98 Lift: .550"/.546" With 1.6 Rockers
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.
Chevy 305/350ci 1987-98
O.E. Hydraulic Roller Camshaft Applications Except LT1 & LT4.
O.E. Hydraulic Roller Camshaft Applications Except LT1 & LT4.
- XFI Hydraulic Roller Camshaft Small Kit
- Lift: .550"/.546" With 1.6 Rockers
- Duration: 252°/264°
- Lobe Separation Angle: 113°
- RPM Range: 1000-5000
Excellent torque for throttle body 305 or 350. Good economy with added power.Note: for use with 1987-98 305 & 350ci factory hydraulic roller camshaft applications, EXCEPT LT1 & LT4.
Operating Range: 1000-5000 RPM Duration Advertised: 252° Intake / 264° Exhaust Duration @ .050' Lift: 202° Intake / 212° Exhaust Valve Lift w/1.6 Rockers: .550' Intake / .546' Exhaust Lobe Separation Angle: 113°
Small Block Chevy 305/350 1987-98
Part TypeCamshaft Kit
BrandCOMP CAMS
Package Height5.0
Package Width10.25
Package Length25.5
Weight19.5 PG
Part CategoryPerformance Parts
Exh. Duration @ .050 In. (Deg)212
Cam StyleHydraulic roller tappet
Grind Number252XFI HR13
Exh. Duration Advertised (Deg)264
Locks IncludedNo
Engine Make/SizeChevy Small Block (262-400)
Retainers IncludedNo
Intake Valve Lift With Factory Rocker Arm Ratio (I0.55
Int. Duration @ .050 In. (Deg)202
Assembly Lubricant IncludedYes
Basic Operating Rpm Range1,000-5,000
Pushrods IncludedNo
Gaskets IncludedNo
Rocker Arms IncludedNo
Intake Valve Lift0.55 in (13.97 mm)
Computer-Controlled CompatibleNo
Int. Duration Advertised (Deg)252
Lobe Separation (Deg)113
Rpm Range1000-5000
Lifter StyleHydraulic roller
Advertised Duration252 int./264 exh.
Exhaust Valve Lift With Factory Rocker Arm Ratio (0.546
Valve Springs IncludedNo
UsageStreet/Performance
Valve Lift With Factory Rocker Arm Ratio0.550 int./0.546 exh.
QuantitySold as a kit
Valve Stem Seals IncludedNo
Exhaust Valve Lift0.546 in (13.868 mm)
Advertised Intake Duration252
Intake Duration At 050 Inch Lift202
Exhaust Duration At 050 Inch Lift212
Timing Chain StyleDouble roller
Timing Chain And Gears IncludedYes
Advertised Exhaust Duration264
Lifter TypeHydraulic Roller
Duration At 050 Inch Lift202 int./212 exh.
Valve Springs RequiredYes
Lifters IncludedYes
Vendor Part NumberSK08-464-8
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
