Vehicle Info NeededCOMP CAMSPART NUMBER: 249-SK09-415-8

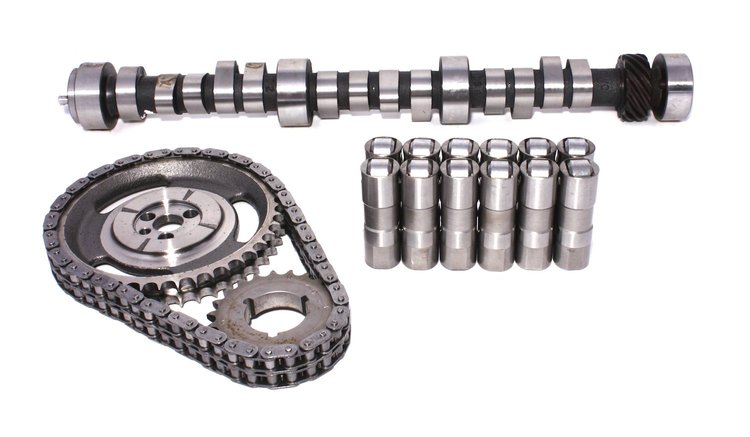

Magnum Hydraulic Roller Camshaft Small Kit Chevy 4.3L V6 1980-97 Lift: .500"/.500"
$80595
Ships on 09/16/2026
Lowest Price GuaranteeChevrolet 4.3 Liter 262ci 90° 6 Cyl. 1980-1997Computer Controlled Vehicles (Non- Balance Shaft)
- Magnum Hydraulic Roller Camshaft Small Kit
- Lift: .500"/.500"
- Duration: 266°/270°
- Lobe Separation Angle: 112°
- RPM Range: 1800-5000
- Works with throttle body and sequential port injection with aftermarket chip
- Good low end and mid-range
- For computer controlled vehicles
90 Degree V6; 4.3: 262; Chevrolet 262; Chevrolet 4.3L; LB1; LB4; L35; LF6; S10; Blazer; S10 Blazer; S15; Sonoma; GMC; Safari; Astro Van; Safari; GMC Safari; Silverado
Works with throttle body and sequential port injection with aftermarket chip. Good low end and mid-range.
Chevy 4.3L V6 1980-97
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Part TypeCamshaft Kit
BrandCOMP CAMS
Package Height5.0
Package Width10.5
Package Length26.0
Weight17.5 PG
Part CategoryPerformance Parts
Exh. Duration @ .050 In. (Deg)215
Cam StyleHydraulic roller tappet
Grind Number266HR
Exh. Duration Advertised (Deg)270
Locks IncludedNo
Engine Make/SizeChevy 262
Retainers IncludedNo
Intake Valve Lift With Factory Rocker Arm Ratio (I0.5
Int. Duration @ .050 In. (Deg)210
Assembly Lubricant IncludedNo
Basic Operating Rpm Range1,800-5,000
Pushrods IncludedNo
Gaskets IncludedNo
Rocker Arms IncludedNo
Intake Valve Lift0.5 in (12.7 mm)
Computer-Controlled CompatibleYes
Int. Duration Advertised (Deg)266
Lobe Separation (Deg)112
Rpm Range1800-5000
Lifter StyleHydraulic roller
Advertised Duration266 int./270 exh.
Exhaust Valve Lift With Factory Rocker Arm Ratio (0.5
Valve Springs IncludedNo
UsageStreet/Strip
Valve Lift With Factory Rocker Arm Ratio0.500 int./0.500 exh.
QuantitySold as a kit
Valve Stem Seals IncludedNo
Exhaust Valve Lift0.5 in (12.7 mm)
Advertised Intake Duration266
Intake Duration At 050 Inch Lift210
Exhaust Duration At 050 Inch Lift215
Timing Chain StyleDouble non-roller
Timing Chain And Gears IncludedYes
Advertised Exhaust Duration270
Lifter TypeHydraulic Roller
Duration At 050 Inch Lift210 int./215 exh.
Valve Springs RequiredYes
Lifters IncludedYes
Vendor Part NumberSK09-415-8
Package Qty1
Package TypeEA
