Vehicle Info NeededCOMP CAMSPART NUMBER: 249-SK09-430-8

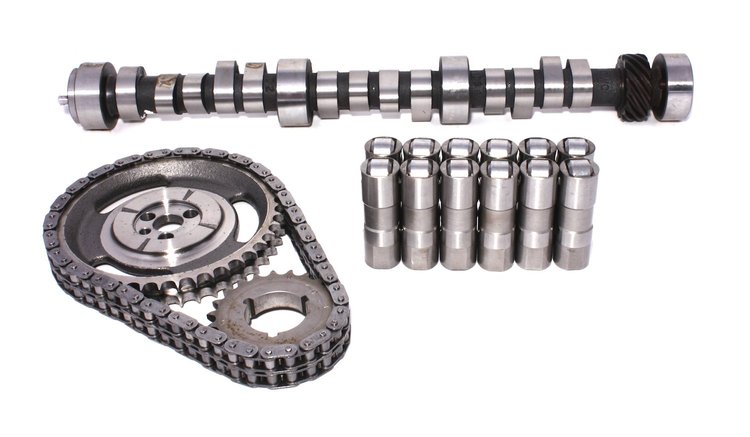

Magnum Hydraulic Roller Camshaft Small Kit Chevy 4.3L V6 1980-97 Lift: .525"/.525"
$88995
Ships on 10/23/2026
Lowest Price GuaranteeChevrolet 4.3 Liter 262ci 90° 6 Cyl. 1980-1997Retro Fit for Non Computer Controlled Vehicles
- Magnum Hydraulic Roller Camshaft Small Kit
- Lift: .525"/.525"
- Duration: 280°/280°
- Lobe Separation Angle: 110°
- RPM Range: 2000-5500
- Cams Are Very Aggressive
- Designed For Performance Oriented Vehicles
- Deliver More Power Than Standard Camshafts
- 1 Year Limited Warranty
90 Degree V6; 4.3: 262; Chevrolet 262; Chevrolet 4.3L; LB1; LB4; L35; LF6; S10; Blazer; S10 Blazer; S15; Sonoma; GMC; Safari; Astro Van; Safari; GMC Safari; Silverado
Limited high performance street use. Needs intake, headers and 2500+ stall, 3.73 to 4.10 gears. Mild rough idle.
Chevy 4.3L V6 1980-97
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Part TypeCamshaft Kit
BrandCOMP CAMS
Package Height5.3
Package Width10.1
Package Length25.4
Weight15.19 PG
Part CategoryPerformance Parts
Exh. Duration @ .050 In. (Deg)224
Cam StyleHydraulic flat tappet
Grind NumberC6 280H-R10
Exh. Duration Advertised (Deg)280
Locks IncludedNo
Engine Make/SizeChevy 262
Retainers IncludedNo
Intake Valve Lift With Factory Rocker Arm Ratio (I0.525
Int. Duration @ .050 In. (Deg)224
Assembly Lubricant IncludedYes
Basic Operating Rpm Range2,000-5,500
Pushrods IncludedNo
Gaskets IncludedNo
Rocker Arms IncludedNo
Intake Valve Lift0.525 in (13.335 mm)
Computer-Controlled CompatibleYes
Int. Duration Advertised (Deg)280
Lobe Separation (Deg)110
Rpm Range2000-5500
Lifter StyleHydraulic flat tappet
Advertised Duration280 int./280 exh.
Exhaust Valve Lift With Factory Rocker Arm Ratio (0.525
Valve Springs IncludedNo
UsageStreet/Strip
Valve Lift With Factory Rocker Arm Ratio0.525 int./0.525 exh.
QuantitySold as a kit
Valve Stem Seals IncludedNo
Exhaust Valve Lift0.525 in (13.335 mm)
Advertised Intake Duration280
Intake Duration At 050 Inch Lift224
Exhaust Duration At 050 Inch Lift224
Timing Chain StyleDouble non-roller
Timing Chain And Gears IncludedYes
Advertised Exhaust Duration280
Lifter TypeHydraulic Roller
Part FitmentSemi Universal
Duration At 050 Inch Lift224 int./224 exh.
Valve Springs RequiredYes
Lifters IncludedYes
Vendor Part NumberSK09-430-8
Package Qty1
Package TypeEA
