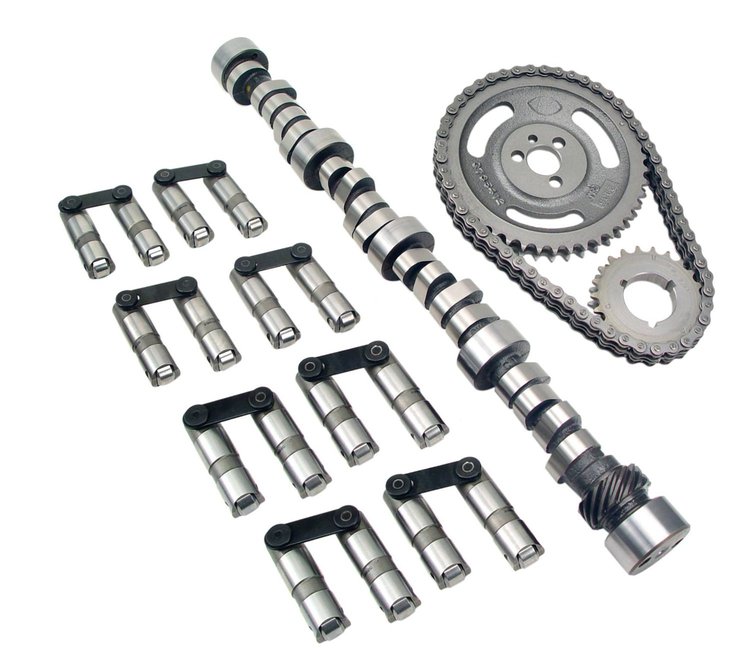

XFI Hydraulic Roller Camshaft Small Kit Small Block Chevy 262-400ci 1955-98 Lift: .560"/.555" With 1.6 Rockers

Name: XFI Hydraulic Roller Camshaft Small Kit Small Block Chevy 262-400ci 1955-98 Lift: .560"/.555" With 1.6 Rockers
Brand: COMP CAMS
SKU: 249-SK12-465-8
Price: 1157.95 USD
Availability: InStock

^$1,157⁹⁵

Ships on 09/16/2026

Lowest Price Guarantee

Chevy 262-400ci 1955-98
Retro-Fit Hydraulic Roller Camshafts

Lift: .560"/.555" With 1.6 Rockers
Duration: 260°/270°
Lobe Separation Angle: 113°

RPM Range:1200-5200

Good low end & mid-range cam. Exhaust upgrade preferred. Smooth torque curve.
Operating Range: 1200-5200 RPM
Duration Advertised: 260° Intake / 270° Exhaust
Duration @ .050' Lift: 210° Intake / 218° Exhaust
Valve Lift w/1.6 Rockers: .560' Intake / .555' Exhaust
Lobe Separation Angle: 113°
265, 283, 307, 302, 305, 327, 350, 383, 400, 427, L46, L48, L65, LM1, LT-1, L82, L81, LS9, L83, L98, L05, LG3, LG4, LT1, LT4, Camaro, Corvette, Chevelle, Stingray, Silverado, C10, Firebird, Chevrolet, Chevy, Small Block Chevy, Caprice, Malibu, Impala, Nova, 355, GEN1, Monte Carlo, S10

Good low end and mid-range cam. Exhaust upgrade preferred. Smooth torque curve.

Emissions Note:

This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART

Part TypeCamshaft Kit
BrandCOMP CAMS
Package Height5.0
Package Width10.25
Package Length25.5
Weight18.0 PG
Part CategoryPerformance Parts
UsageStreet/Performance
Intake Valve Lift0.56 in (14.224 mm)
Int. Duration Advertised (Deg)260
Exh. Duration @ .050 In. (Deg)218
Rpm Range1200-5200
Lifter TypeHydraulic Roller Retrofit
Exh. Duration Advertised (Deg)270
Part FitmentSemi Universal
Engine Make/SizeChevy Small Block (262-400)
Int. Duration @ .050 In. (Deg)210
Exhaust Valve Lift0.555 in (14.097 mm)
Vendor Part NumberSK12-465-8
Package Qty1
Package TypeEA

No Questions

No Reviews

Some parts are not legal for use in California or other states with similar laws / regulations
⚠️ Warning
Motor Vehicles
WARNING: Motor vehicles contain fuel, oils and fluids, battery posts, terminals and related accessories which contain lead and lead compounds and other chemicals known to the State of California to cause cancer, birth defects and other reproductive harm. These chemicals are found in vehicles, vehicle parts and accessories, both new and as replacements. When being serviced, these vehicles generate used oil, waste fluids, grease, fumes and particulates, all known to the State of California to cause cancer, birth defects, and reproductive harm.
Tools
WARNING: Some dust created by power sanding, sawing, grinding, drilling, and other construction activities contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. Some examples of these chemicals are: lead from lead-based paints, crystalline silica from bricks and cement and other masonry products, and arsenic and chromium from chemically treated lumber. Your risk from exposure to these chemicals varies, depending on how often you do this type of work. To reduce your exposure, work in a well-ventilated area and with approved safety equipment, such as dust masks that are specially designed to filter out microscopic particles.
Electrical Cords
WARNING: The wires of these products contain chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. Wash hands after handling.

Operating Range:	1200-5200 RPM
Duration Advertised:	260° Intake / 270° Exhaust
Duration @ .050' Lift:	210° Intake / 218° Exhaust
Valve Lift w/1.6 Rockers:	.560' Intake / .555' Exhaust
Lobe Separation Angle:	113°
