Vehicle Info NeededCOMP CAMSPART NUMBER: 249-SK20-214-4

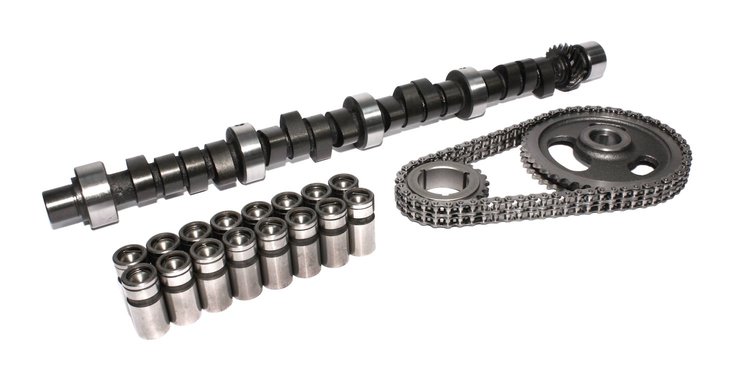

Magnum 270H Hydraulic Flat Tappet Camshaft Small Kit Lift: .470"/.470" Duration: 270°/270° RPM Range: 1800-5800
$43595
Ships on 10/26/2026
Lowest Price GuaranteeChrysler 273-360ci Small Block 1964-2000
- Magnum 270H Hydraulic Flat Tappet Camshaft Small Kit
- Mild high performance in 340
- 3.53-3.91 gears
- Dual exhaust
- 9:1 comp
273, 360, 318, AMC, Dodge, Mopar, Plymouth, Dart, Road Runner, Charger, Challenger, 383, 400, 440, 426, HEMI, 426 Wedge, 426 HEMI, RB, B, HEMI, 392, Chrysler, LA
Mild high performance in 340, 3.53-3.91 gears, dual exhaust and 9:1 compression.
Lift: .470"/.470"
Duration: 270°/270°
RPM Range: 1800-5800
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Part TypeCamshaft Kit
BrandCOMP CAMS
Package Height5.0
Package Width10.5
Package Length26.0
Weight19.0 PG
Part CategoryPerformance Parts
Exh. Duration @ .050 In. (Deg)224
Cam StyleHydraulic flat tappet
Grind NumberCRS 270H-10
Exh. Duration Advertised (Deg)270
Locks IncludedNo
Engine Make/SizeMopar 273-360
Retainers IncludedNo
Intake Valve Lift With Factory Rocker Arm Ratio (I0.47
Int. Duration @ .050 In. (Deg)224
Assembly Lubricant IncludedYes
Basic Operating Rpm Range1,800-5,800
Pushrods IncludedNo
Gaskets IncludedNo
Rocker Arms IncludedNo
Intake Valve Lift0.47 in (11.938 mm)
Computer-Controlled CompatibleNo
Int. Duration Advertised (Deg)270
Lobe Separation (Deg)110
Rpm Range1800-5800
Lifter StyleHydraulic flat tappet
Advertised Duration270 int./270 exh.
Exhaust Valve Lift With Factory Rocker Arm Ratio (0.47
Valve Springs IncludedNo
UsageStreet/Strip
Valve Lift With Factory Rocker Arm Ratio0.470 int./0.470 exh.
QuantitySold as a kit
Valve Stem Seals IncludedNo
Exhaust Valve Lift0.47 in (11.938 mm)
Advertised Intake Duration270
Intake Duration At 050 Inch Lift224
Exhaust Duration At 050 Inch Lift224
Timing Chain StyleDouble non-roller
Timing Chain And Gears IncludedYes
Advertised Exhaust Duration270
Lifter TypeHydraulic Flat Tappet
Part FitmentSemi Universal
Duration At 050 Inch Lift224 int./224 exh.
Valve Springs RequiredYes
Lifters IncludedYes
Vendor Part NumberSK20-214-4
Package Qty1
Package TypeEA
