Vehicle Info NeededCOMP CAMSPART NUMBER: 249-SK31-238-3

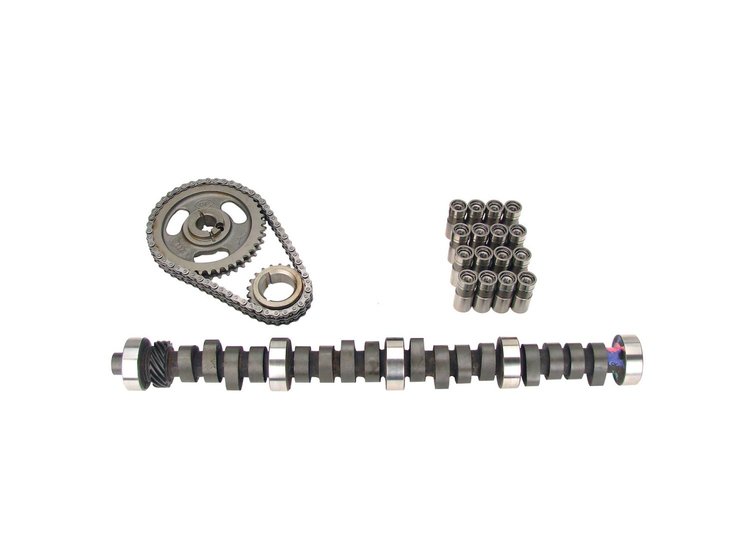

Xtreme Energy 262H Hydraulic Flat Tappet Camshaft Small Kit Lift: .493" /.500" Duration: 262°/270° RPM Range: 1300-5600
$39195
3 left in stock
Ships Today
Lowest Price GuaranteeFord 221-302 C.I. 8 cyl. 1963-1995 (Includes 221, 260, 289 & 302)
- Xtreme Energy 262H Hydraulic Flat Tappet Camshaft Small Kit
- Hydraulic-Excellent response, good mid-range, stock converter, 3.23-4.10 gear.
Ford; SBF; Mustang; Windsor; Fairlane; Meteor; Mercury; GT; 22; 260; Sunbeam; Tiger; 289; 302; 351; 289; HiPo; K-Code; GT-350; Shelby; Boss; 5.0; 308; Windsor; Torino; Cougar; F-150; Squire; Thunderbird; LTD; Galaxie; Grand Marquis
Lift: .493''/.500''
Duration: 262°/270°
RPM Range: 1300-5600
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Part TypeCamshaft Kit
BrandCOMP CAMS
Package Height5.3
Package Width10.3
Package Length25.3
Weight18.21 PG
Part CategoryPerformance Parts
Exh. Duration @ .050 In. (Deg)224
Cam StyleHydraulic flat tappet
Grind NumberFS XE262H-10
Exh. Duration Advertised (Deg)270
Locks IncludedNo
Engine Make/SizeFord 289-302
Retainers IncludedNo
Intake Valve Lift With Factory Rocker Arm Ratio (I0.493
Int. Duration @ .050 In. (Deg)218
Assembly Lubricant IncludedYes
Basic Operating Rpm Range1,300-5,600
Pushrods IncludedNo
Gaskets IncludedNo
Rocker Arms IncludedNo
Intake Valve Lift0.493 in (12.522 mm)
Computer-Controlled CompatibleNo
Int. Duration Advertised (Deg)262
Lobe Separation (Deg)110
Rpm Range1300-5600
Lifter StyleHydraulic flat tappet
Advertised Duration262 int./270 exh.
Exhaust Valve Lift With Factory Rocker Arm Ratio (0.5
Valve Springs IncludedNo
UsageStreet/Performance
Valve Lift With Factory Rocker Arm Ratio0.493 int./0.500 exh.
QuantitySold as a kit
Valve Stem Seals IncludedNo
Exhaust Valve Lift0.5 in (12.7 mm)
Advertised Intake Duration262
Intake Duration At 050 Inch Lift218
Exhaust Duration At 050 Inch Lift224
Timing Chain StyleDouble non-roller
Timing Chain And Gears IncludedYes
Advertised Exhaust Duration270
Lifter TypeHydraulic Flat Tappet
Duration At 050 Inch Lift218 int./224 exh.
Valve Springs RequiredYes
Lifters IncludedYes
Vendor Part NumberSK31-238-3
Package Qty1
Package TypeEA
